Size 35mm NEMA 14 Linear Actuator Stepper Motor External Type 34mm Stack Lead 2mm Length 180mm

Size 35mm NEMA 14 Linear Actuator Stepper Motor External Type 34mm Stack Lead 2mm Length 180mm

$40.00

In Stock:

5

Model: 35AI34-1254E-180N52

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 14 Linear Actuator Stepper Motor External: This size 34mm model is a NEMA 14 External type lead screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 1.25A rated current. It is integrated with a Φ5mm diameter, 180mm lead screw length and a POM screw nut, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 14 Linear Actuator Stepper Motor External Specification

  • Part Number: 35AI34-1254E-180N52
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.25A
  • Driving Voltage: 12-24VDC
  • Frame Size: 35x35mm
  • Body Length: 34mm
  • Lead Screw Length: 180mm
  • Lead Screw Diameter: Φ5mm
  • Lead/Revolution: 2mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 250g

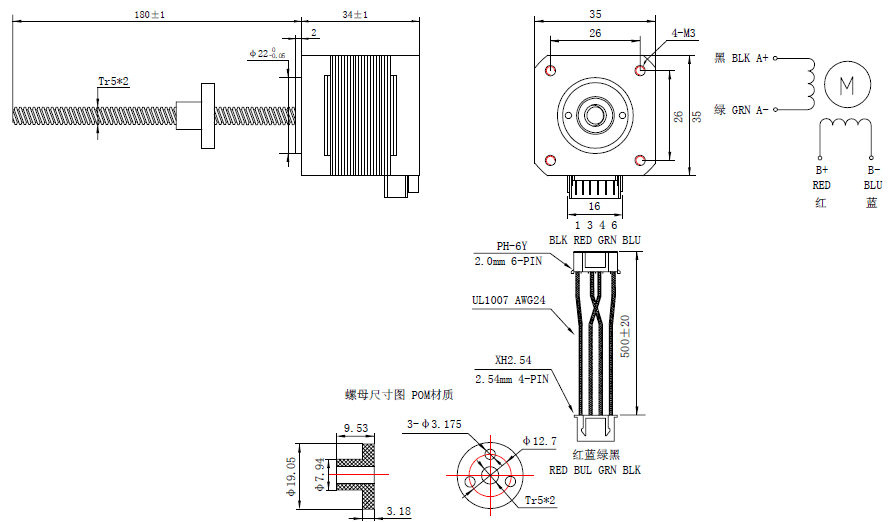

Overall Size

NEMA 14 Linear Actuator Stepper Motor External
