NEMA 11 SMT Machine Motor

NEMA 11 SMT Machine Hollow Shaft Stepper Motor Dual Shaft with Mounting Nozzle Head & Trachea

$60.00

In Stock:

10

Model: 28AI33-1004K-SMT

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 11 SMT Machine Motor: This small motor kit is composed of a size 28mm NEMA 11 hollow shaft stepper motor dual shaft with SAMSUNG nozzle head and a trachea. It is specially designed for SMT Dispensing Machine.

NEMA 11 SMT Machine Motor Specification

  • Part Number: 28AI33-1004K-SMT
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.07Nm
    Rated Current/phase: 1.0A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Motor Length: 33mm
    Shaft Type: Hollow Shaft
    Number of Leads: 4
    Lead Length: 500mm
    Nozzle Type: SAMSUNG

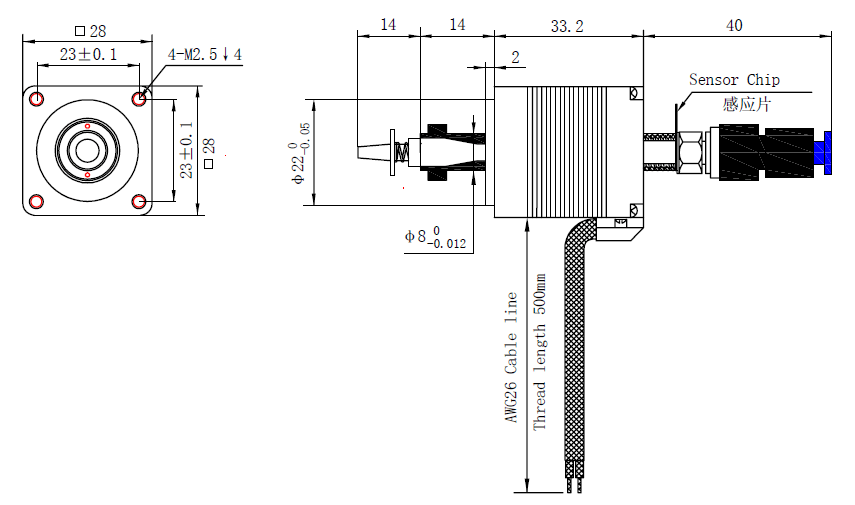

Overall Size

NEMA 11 SMT Machine Motor
