nema-11-linear-stepper-motor-lead-2-54mm-33mm

Size 28mm NEMA 11 Linear Actuator Stepper Motor External 33mm Stack Screw Dia. 6.35mm Lead 2.54mm Length 150mm

$40.00

In Stock:

5

Model: 28AI33-1004E-150L2.54

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 11 Linear Stepper Motor Lead 2-54mm: This size 28mm model is a NEMA 11 External type lead screw linear actuator stepper motor with a 32mm body length, 1.8 degree step angle and 1.0A rated current. It is integrated with a Φ6.35mm diameter, 150mm lead screw length and a POM screw nut, the linear travel is 2.54mm per revolution/0.0127mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 11 Linear Stepper Motor Lead 2-54mm Specification

  • Part Number: 28AI33-1004E-150L2.54
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.0A
  • Holding Torque: 0.06Nm
  • Insulation Class: B 130°C
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 33mm
  • Lead Screw Length: 150mm
  • Lead Screw Diameter: Φ6.35mm
  • Lead/Revolution: 2.54mm
  • Lead/Step: 0.0127mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 200g

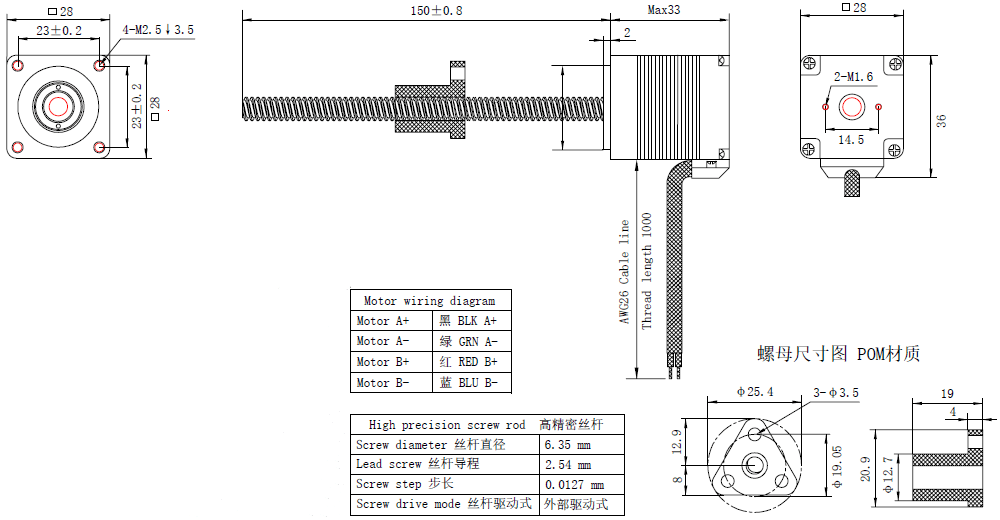

Overall Size

NEMA 11 Linear Stepper Motor Lead 2-54mm
