Size 28mm NEMA 11 Linear Actuator Dual Shaft Stepper Motor Ball Screw 33mm Stack Lead 2mm with Rear Shaft

$125.00

In Stock:

5

Model: 28AI33-1004G-100L82B

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 11 Ball Screw Motor Dual Shaft: This size 28mm model is a NEMA 11 External type ball screw linear actuator dual shaft stepper motor with a 33mm body length with a rear shaft, 1.8 degree step angle and 1.0A rated current. It is integrated with a Φ8mm diameter, 100mm ball screw length and a ball screw nut, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 11 Ball Screw Motor Dual Shaft Specification

  • Part Number: 28AI33-1004G-100L82B
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.0A
  • Holding Torque: 0.12Nm
  • Insulation Class: B 130°C
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 33mm
  • Lead Screw Length: 100mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 2mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 180g

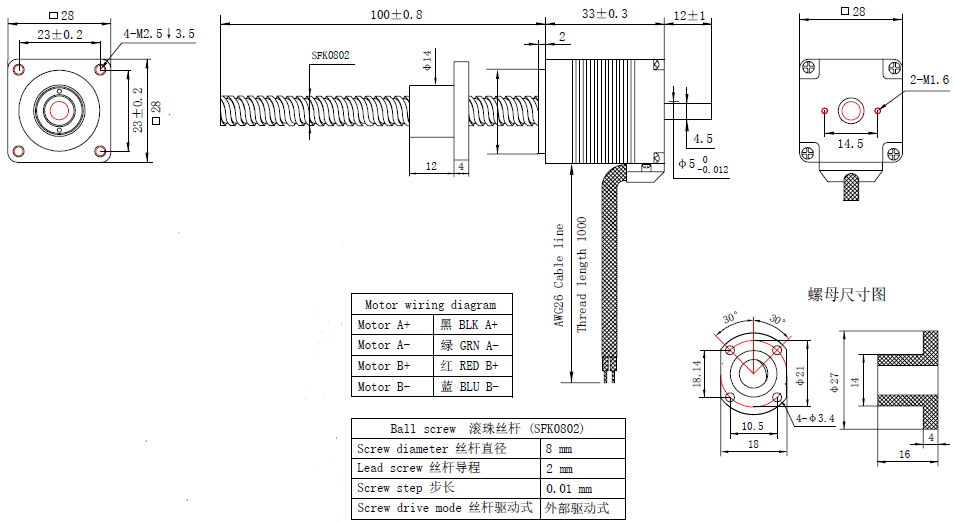

Overall Size

NEMA 11 Ball Screw Motor Dual Shaft
