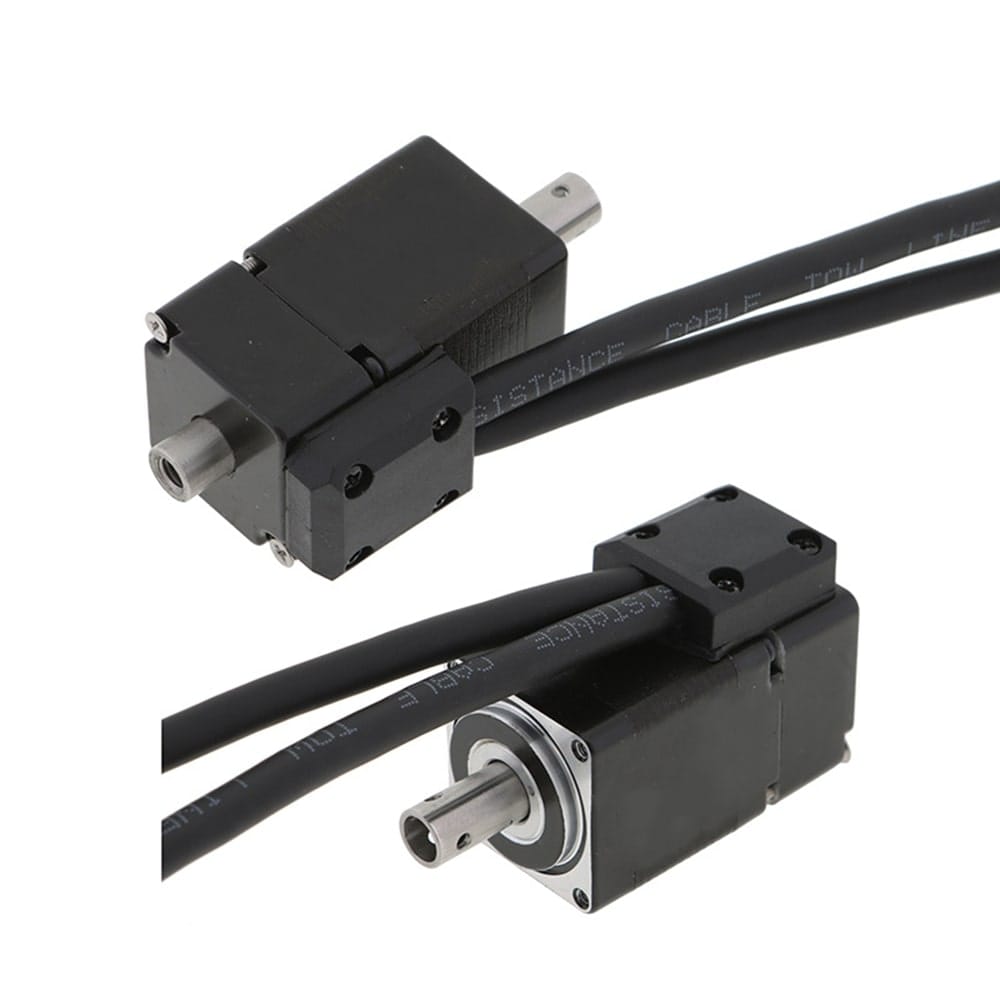

NEMA 11 Hollow Shaft Closed-loop Stepper Motor 0.07Nm 28x33mm with 2500PPR Encoder

$75.00

In Stock:

41

Model: 28HB33EC-1004K

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

41 in stock (can be backordered)

NEMA 11 Hollow Shaft Closed Loop Stepper Motor: This small size 28mm NEMA 11 hollow shaft closed-loop stepper motor with 2500PPR incremental optical encoder has a body length 33mm with 1.0A rated current & holding torque 0.07Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ3.7mm is available and also a double shaft with the front shaft length 16mm and rear shaft length 7.4mm is designed.

NEMA 11 Hollow Shaft Closed Loop Stepper Motor Specification

  • Part Number: 28HB33EC-1004K
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.07Nm
    Rated Current/phase: 1.0A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Body Length: 47.4mm
    Encoder Type: Incremental Optical
    Encoder Resolution: 2500PPR
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ3.7mm
    Outer Diameter: Φ8.0mm
    Front Shaft Length: 16mm
    Rear Shaft Length: 7.4mm
    Number of Leads: 4
    Lead Length: 300mm
    Weight: 150g

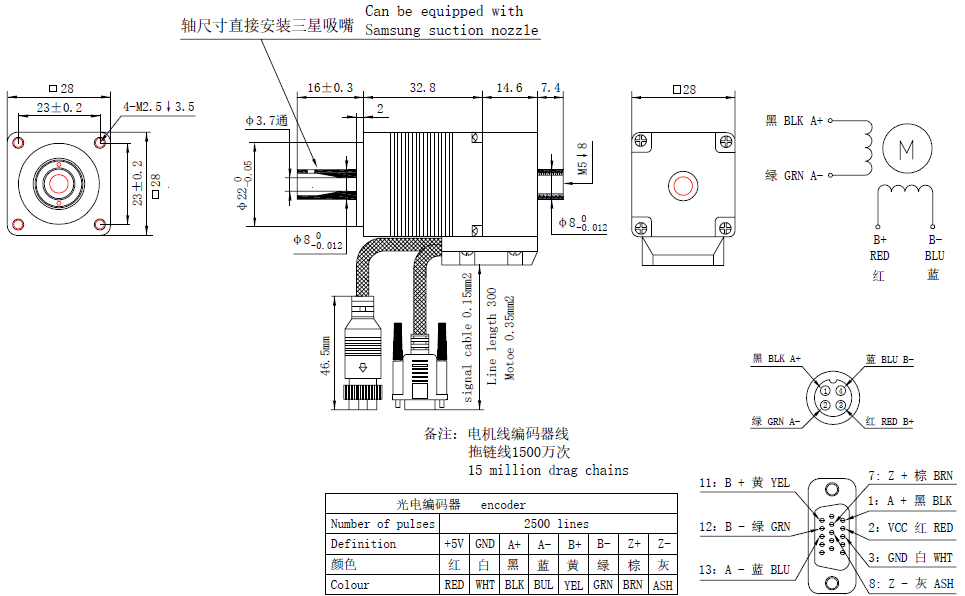

Overall Size

NEMA 11 Hollow Shaft Closed Loop Stepper Motor
