3D Printer Stepper Motor NEMA 23 1-8Nm

3D Printer Stepper Motor NEMA 23 Bipolar 57x76mm 1.8Nm/255oz-in 4A 4 Leads

$15.00

In Stock:

20

Model: 57AI76-4004S

Weight: 1.3KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

3D Printer Stepper Motor NEMA 23 1-8Nm: This size 57mm 2 phase NEMA 23 hybrid bipolar stepper motor has a 1.8° step angle (200 steps/revolution) and a body length 76mm. Each phase draws a rated current 4.0A, allowing for a strong holding torque of 1.8Nm/255oz-in. It is very suitable for the outstanding 3D printers made by Prusa Research, Stratasys, Desktop Metal, Ultimaker, Creality, etc. Please note a 2000mm cable with a GX16 aviation plug connector is assembled for this motor. If you need a extension cable, please feel free to contact us.

3D Printer Stepper Motor NEMA 23 1-8Nm Specification

3D Printer Stepper Motor NEMA 23 1-8Nm

  • Part Number: 57AI76-4004S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 1.8Nm/255oz-in
  • Rated Current/phase: 4.0A
  • Phase Resistance: 0.6ohms
  • Inductance: 1.8mH
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-cut Length: 18mm
  • Number of Leads: 4
  • Lead Length: 2000mm
  • Weight: 1.1kg
  • Stepper Drive: DM556

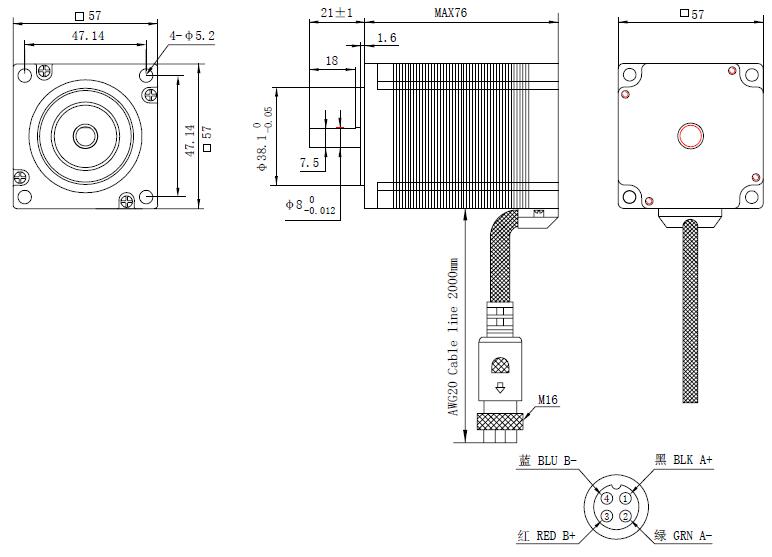

Overall Size

57AI76-4004S Datasheet

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
