3D Printer Linear Stepper Motor NEMA 17 Bipolar 42x40mm Lead 4mm Screw Length 300mm

3D Printer Linear Stepper Motor NEMA 17 Bipolar 42x40mm Lead 4mm Screw Length 300mm

$32.50

In Stock:

20

Model: 42AI40-BYGL4

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

3D Printer Lead Screw NEMA 17 Stepper Motor 40mm: This size 42mm linear actuator model is a NEMA 17 External type lead screw linear stepper motor with a 40mm body length, 1.8 degree step angle and 2.0A rated current. It is integrated with a Φ8mm diameter, 300mm lead screw length and a brass screw nut, the linear travel is 4mm per revolution/0.02mm per step. It is very suitable for the outstanding 3D printers made by Prusa Research, Stratasys, Desktop Metal, Ultimaker, Creality, Voron, etc.

3D Printer Lead Screw NEMA 17 Stepper Motor 40mm Specification

3D Printer Lead Screw NEMA 17 Stepper Motor 40mm

  • Part Number: 42AI40-BYGL4
  • Motor Type: External
    Step Angle: 1.8deg
    Bi/Unipolar: Bipolar
    Rated Current/phase: 2.0A
    Driving Voltage: 12-24VDC
    Frame Size: 42x42mm
    Body Length: 40mm
    Lead Screw Length: 300mm
    Lead Screw Diameter: Φ8mm
    Lead/Revolution: 4mm
    Lead/Step: 0.02mm
    Number of Leads: 4
    Lead Length: 1000mm
    Weight: 400g
  • Stepper Drive: FLKH2D0228DC

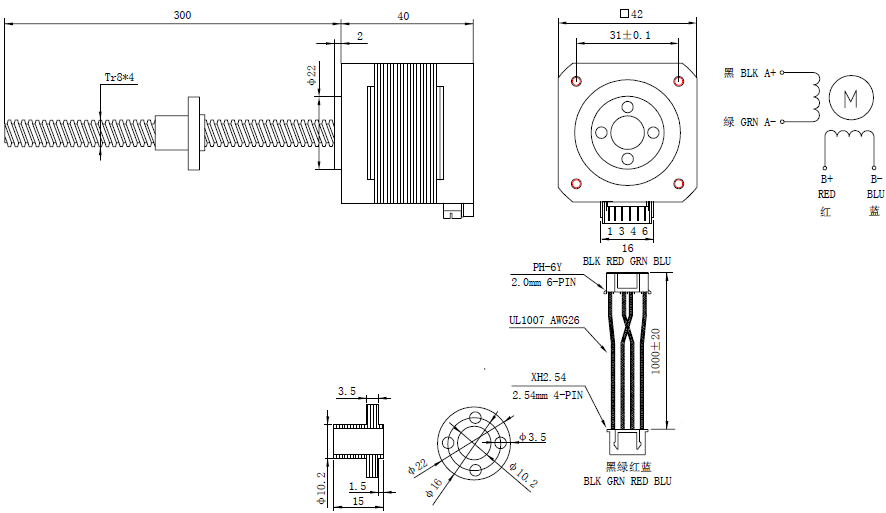

Overall Size

42AI40-BYGL Datasheet

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
