3D Printer Linear Stepper Motor NEMA 17 Bipolar 42x34mm Lead 8mm Screw Length 200mm

3D Printer Linear Stepper Motor NEMA 17 Bipolar 42x34mm Lead 8mm Screw Length 200mm

$30.00

In Stock:

20

Model: 42AI34-BYGL

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

3D Printer Lead Screw NEMA 17 Stepper Motor 34mm: This size 42mm linear actuator model is a NEMA 17 External type lead screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 0.4A rated current. It is integrated with a Φ8mm diameter, 200mm lead screw length and a POM screw nut, the linear travel is 8mm per revolution/0.04mm per step. It is very suitable for the outstanding 3D printers made by Prusa Research, Stratasys, Desktop Metal, Ultimaker, Creality, Voron, etc.

3D Printer Lead Screw NEMA 17 Stepper Motor 34mm Specification 3D Printer Lead Screw NEMA 17 Stepper Motor 34mm

  • Part Number: 42AI34-BYGL
  • Motor Type: External
    Step Angle: 1.8deg
    Bi/Unipolar: Bipolar
    Rated Current/phase: 0.4A
    Driving Voltage: 12-24VDC
    Frame Size: 42x42mm
    Body Length: 34mm
    Lead Screw Length: 200mm
    Lead Screw Diameter: Φ8mm
    Lead/Revolution: 8mm
    Lead/Step: 0.04mm
    Number of Leads: 4
    Lead Length: 500mm
    Weight: 300g
  • Stepper Drive: FLKH2D0228DC

Overall Size

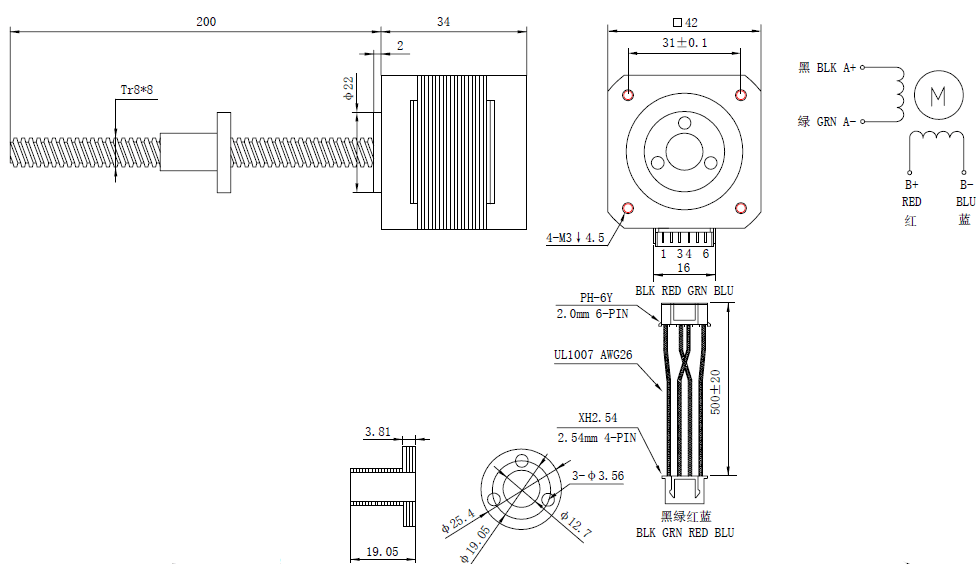

42AI34-BYGL Datasheet

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
