3D Printer Stepper Motor NEMA 17 Bipolar 42x40mm 2A 0.45Nm

3D Printer Stepper Motor NEMA 17 Bipolar 42x40mm 0.45Nm/64oz-in 2A 4 Leads

$10.00

In Stock:

20

Model: 42AI40-BYGS

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

3D Printer NEMA 17 Stepper Motor 40mm: This size 42mm 2 phase NEMA 17 hybrid bipolar stepper motor has a 1.8° step angle (200 steps/revolution) and a body length 40mm. Each phase draws a rated current 2.0A, allowing for a holding torque of 0.45Nm/64oz-in. It is very suitable for the outstanding 3D printers made by Prusa Research, Stratasys, Desktop Metal, Ultimaker, Creality, Voron, etc.

3D Printer NEMA 17 Stepper Motor 40mm Specification3D Printer NEMA 17 Stepper Motor 40mm

  • Part Number: 42AI40-BYGS
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.45Nm/64oz-in
  • Rated Current/phase: 2.0A
  • Phase Resistance: 1.1ohms
  • Inductance: 2.6mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 40mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 22mm
  • D-cut Length: 19mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 0.3kg
  • Stepper Drive: FLKH2D0228DC

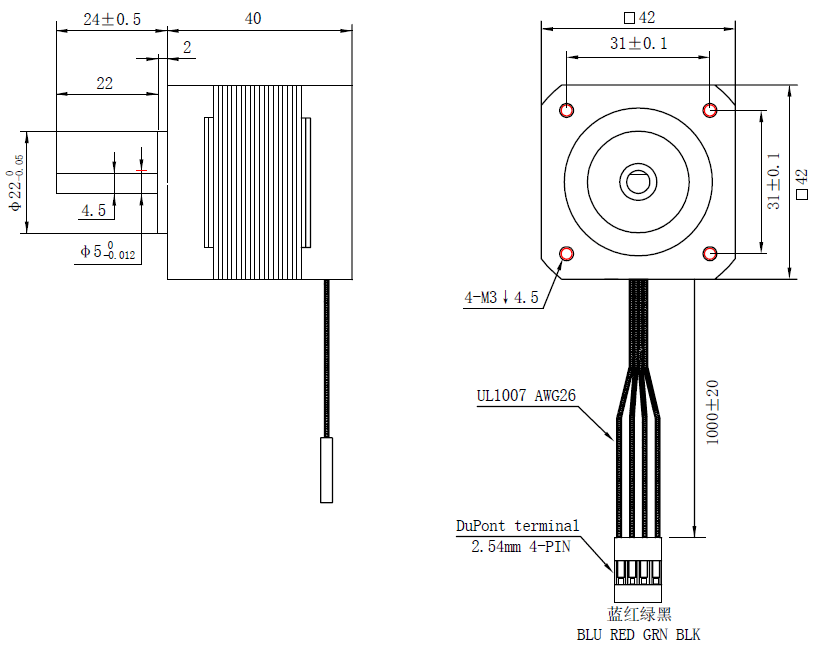

Overall Size

42AI40-BYGS Datasheet

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
