3D Printer Stepper Motor NEMA 17 Bipolar 42x60mm 0.8Nm

3D Printer Stepper Motor NEMA 17 Bipolar 42x60mm 0.8Nm/113.6oz-in 2.3A 4 Leads

$13.50

In Stock:

20

Model: 42AI60-BYGH

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

3D Printer NEMA 17 Stepper Motor 0-8Nm: This size 42mm 2 phase NEMA 17 hybrid bipolar stepper motor has a 1.8° step angle (200 steps/revolution) and a body length 60mm. Each phase draws a rated current 2.3A, allowing for a higher holding torque of 0.8Nm/113.6oz-in. It is very suitable for the outstanding 3D printers made by Prusa Research, Stratasys, Desktop Metal, Ultimaker, Creality, Voron, etc.

3D Printer NEMA 17 Stepper Motor 0-8Nm Specification

3D Printer NEMA 17 Stepper Motor 0-8Nm

  • Part Number: 42AI60-BYGH
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.8Nm/113.6oz-in
  • Rated Current/phase: 2.3A
  • Phase Resistance: 1.6ohms
  • Inductance: 4.0mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 60mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 0.5kg
  • Stepper Drive: FLKH2D0228DC

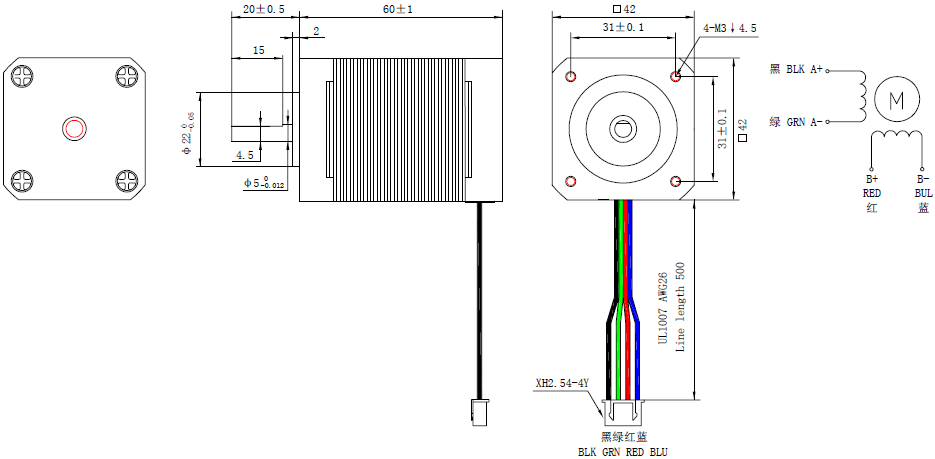

Overall Size

42AI60-BYGH Datasheet

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
