3D Printer Stepper Motor NEMA 14 Round 36x20mm 0.12Nm

3D Printer Stepper Motor NEMA 14 Round 36x20mm 0.12Nm/17oz-in 1A 4 Leads

$12.50

In Stock:

20

Model: 36AI20-BYGH

Weight: 0.11KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

3D Printer NEMA 14 Round Stepper Motor 36mm: This size 36mm round 2 phase NEMA 14 hybrid bipolar stepper motor has a 1.8° step angle (200 steps/revolution) and a body length 20mm. Each phase draws a rated current 1.0A, allowing for a holding torque of 0.12Nm/17oz-in. It is very suitable for the outstanding 3D printers made by Prusa Research, Stratasys, Desktop Metal, Ultimaker, Creality, Voron, etc.

3D Printer NEMA 14 Round Stepper Motor 36mm Specification

3D Printer NEMA 14 Round Stepper Motor 36mm

  • Part Number: 36AI20-BYGH
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.12Nm/17oz-in
  • Rated Current/phase: 1.0A
  • Phase Resistance: 10ohms
  • Inductance: 6mH
  • Driving Voltage: 12-24VDC
  • Frame Size: Φ36.5mm
  • Body Length: 20mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 22mm
  • D-cut Length: 17mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 0.11kg
  • Stepper Drive: FLKH2D0228DC

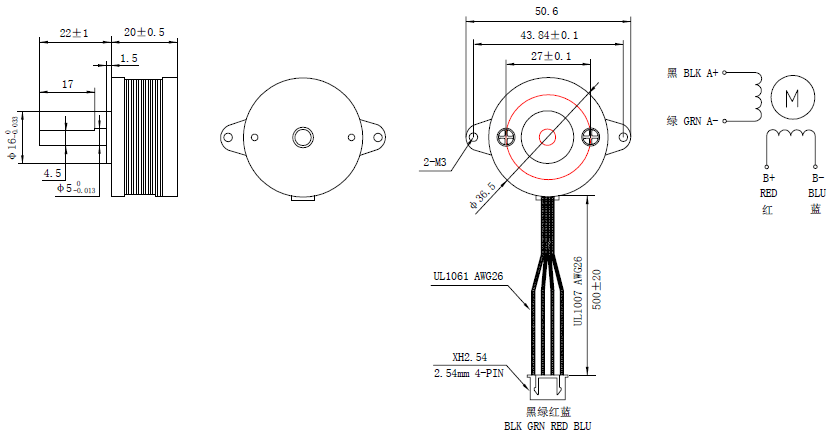

Overall Size

36AI20-BYGH Datasheet

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
