3D Printer Linear Stepper Motor NEMA 14 35x34mm Lead 2mm

3D Printer Linear Stepper Motor NEMA 14 Bipolar 35x34mm Lead 2mm Screw Length 180mm

$30.00

In Stock:

20

Model: 35AI34-BYGL

Weight: 0.18KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

3D Printer Lead Screw NEMA 14 Stepper Motor: This size 34mm linear actuator model is a NEMA 14 External type lead screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 1.25A rated current. It is integrated with a Φ5mm diameter, 180mm lead screw length and a POM screw nut, the linear travel is 2mm per revolution/0.01mm per step. It is very suitable for the outstanding 3D printers made by Prusa Research, Stratasys, Desktop Metal, Ultimaker, Creality, Voron, etc.

3D Printer Lead Screw NEMA 14 Stepper Motor Specification

3D Printer Lead Screw NEMA 14 Stepper Motor

  • Part Number: 35AI34-BYGL
  • Motor Type: External
    Step Angle: 1.8deg
    Bi/Unipolar: Bipolar
    Rated Current/phase: 1.25A
    Driving Voltage: 12-24VDC
    Frame Size: 35x35mm
    Body Length: 34mm
    Lead Screw Length: 180mm
    Lead Screw Diameter: Φ5mm
    Lead/Revolution: 2mm
    Lead/Step: 0.01mm
    Number of Leads: 4
    Lead Length: 500mm
    Weight: 250g
  • Stepper Drive: FLKH2D0228DC

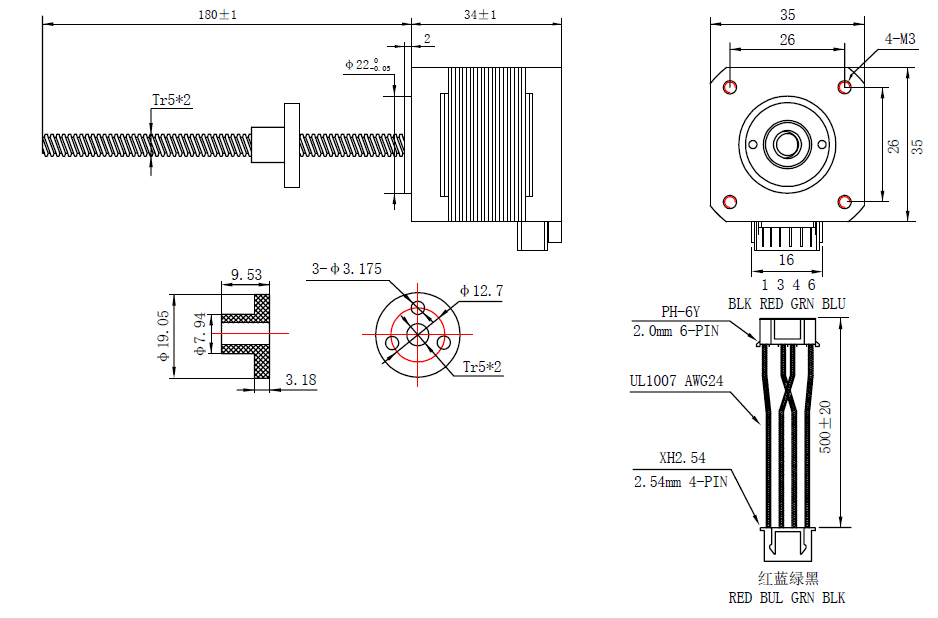

Overall Size

35AI34-BYGL Datasheet

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
