38mm-geared-dc-motor-50rpm-1-7nm-12v-18w

Size 38mm Planetary Geared DC Motor 12V 50RPM 1.7Nm 18W

$52.00

In Stock:

10

Model: 38WS64-12V-S50

Weight: 0.65KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

38mm Geared DC Motor 50RPM:  This compact size 38mm brushed dc motor has a rated voltage 12V and 18w power, integrated with a integrated with a strong planetary gearbox, which can generate a high torque output 1.7Nm and a low speed 37.5rpm.

38mm Geared DC Motor 50RPM Specification

  • Part Number: 38WS64-12V-S50
  • Rated Voltage: 12V
  • Rated Curent: 1.5A
  • Rated Power: 18W
  • Insulation Class: B
  • No-loaded Speed: 50RPM
  • Rated Speed: 37.5RPM
  • Rated Torque: 1.7Nm
  • Frame Size: Φ38mm
  • Body Length: 107.5mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 25mm
  • Number of Leads: 2
  • Lead Length: 300mm
  • Weight: 0.65kg

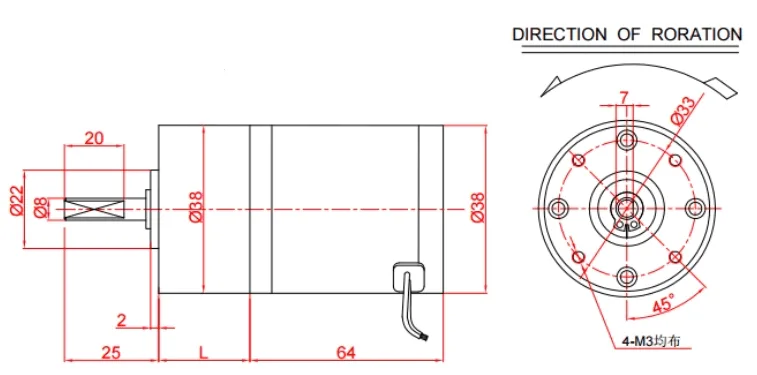

Overall Size

38mm Geared DC Motor 50RPM

L=43.5mm
