Size 22mm Planetary Geared Coreless DC Motor 24V 282RPM 0.37Nm 10W

$49.00

In Stock:

10

Model: 22SM30-24V-PG28

Weight: 0.06KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

22mm Geared DC Motor 282RPM:  This small size 22mm brushed dc coreless motor has a rated voltage 24V and 10w rated power, integrated with integrated with one planetary gearbox of gear ratio 28:1, which can generate a high torque output 0.37Nm and a low rated speed 212rpm. Because of coreless design, this small geared motor provides higher efficiency , higher speed, higher torque, higher lifespan and lower noise than general brushed dc motor.

22mm Geared DC Motor 282RPM Specification

  • Part Number: 22SM30-24V-PG28
  • Rated Voltage: 24V
  • Rated Curent: 0.7A
  • Rated Power: 10W
  • Insulation Class: B
  • Gear Ratio: 28:1
  • No-loaded Speed: 282RPM
  • Rated Speed: 212RPM
  • Rated Torque: 0.37Nm
  • Frame Size: Φ22mm
  • Body Length: 5mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 20mm
  • Number of Leads: 2
  • Weight: 0.06kg

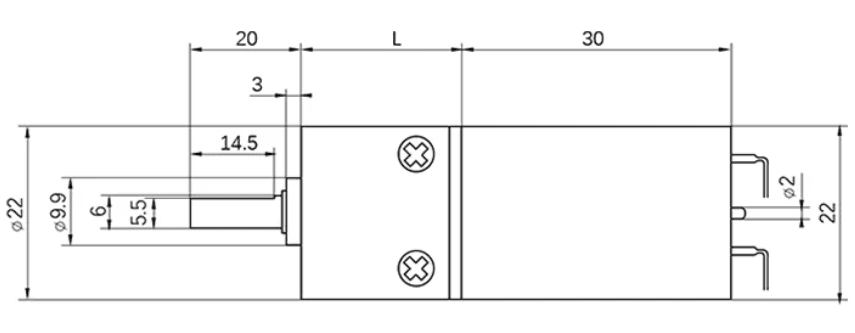

Overall Size

22mm Geared DC Motor 282RPM

L=27.7mm
