PM Stepper Motor 42x22mm 7.5deg 500g.cm 0.17A 6 Leads

Permanent Magnet PM Stepper Motor 42x22mm 12V 7.5deg 500g.cm 0.17A 6 Leads

$8.50

In Stock:

20

Model: 42AI22-0186A-C1

Weight: 0.14KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

42mm PM Stepper Motor 12V: This permanent magnet, also called PM, stepper motor has a frame size 42-22mm with 4 phase & step angle 7.5degree, each phase drawing 0.171A rated current and 12V voltage to generate a holding torque 500g.cm. It is widely used for medical equipment, industrial automation, office equipment, sewing machine, etc.

42mm PM Stepper Motor 12V Specification

Manufacturer Part Number: 42AI22-0186A-C1
Motor Type: PM Stepper
Phase: 4
Step Angle: 7.5deg
Rated Current/phase: 0.171A
Holding Torque: 500g.cm
Detent Torque: 100g.cm
Phase Resistance: 70ohms(20℃)
Insulation Class: B 130°C[266°F] Inductance: 50.93mH±20%(1KHz)
Life: 3000h MIN(20℃,100pps)
Frame Size: Φ42mm
Body Length: 22.2mm
Shaft Diameter: Φ3mm
Shaft Length: 12mm
Number of Leads: 6 with connector PHR-06
Lead Length: 500mm
Weight: 140g

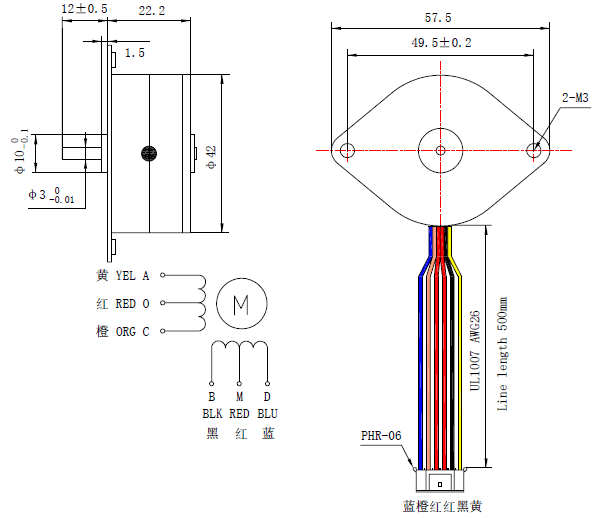

Overall Size

42mm PM Stepper Motor 12V

Reviews

There are no reviews yet.

Be the first to review “Permanent Magnet PM Stepper Motor 42x22mm 12V 7.5deg 500g.cm 0.17A 6 Leads”

Your email address will not be published. Required fields are marked *

Tag: 12v motor, 12v stepper motor, 6 leads, pm stepper motor

Related Products

  • nema-23-stepper-motor-brake-1-8nm-4-2a

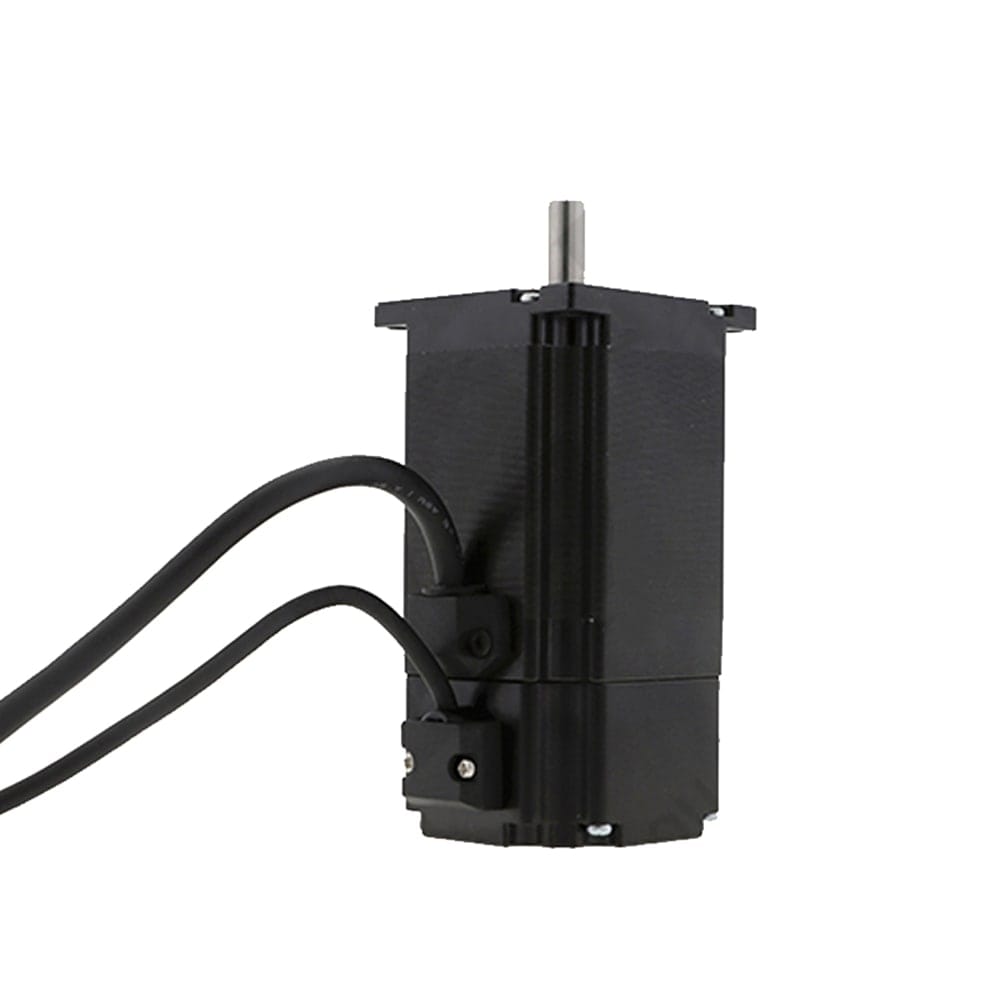

    Size 57mm NEMA 23 Stepper Motor 1.8Nm with 24V Electromagnetic Brake

    $75.00

  • nema-11-low-backlash-geared-motor-ratio-50-1

    NEMA 11 High Precision Geared Stepper Motor Reduction Ratio 50:1 Planetary Gearbox 15arc-min

    $90.00

  • nema-11-precision-geared-stepper-motor-ratio-20-1

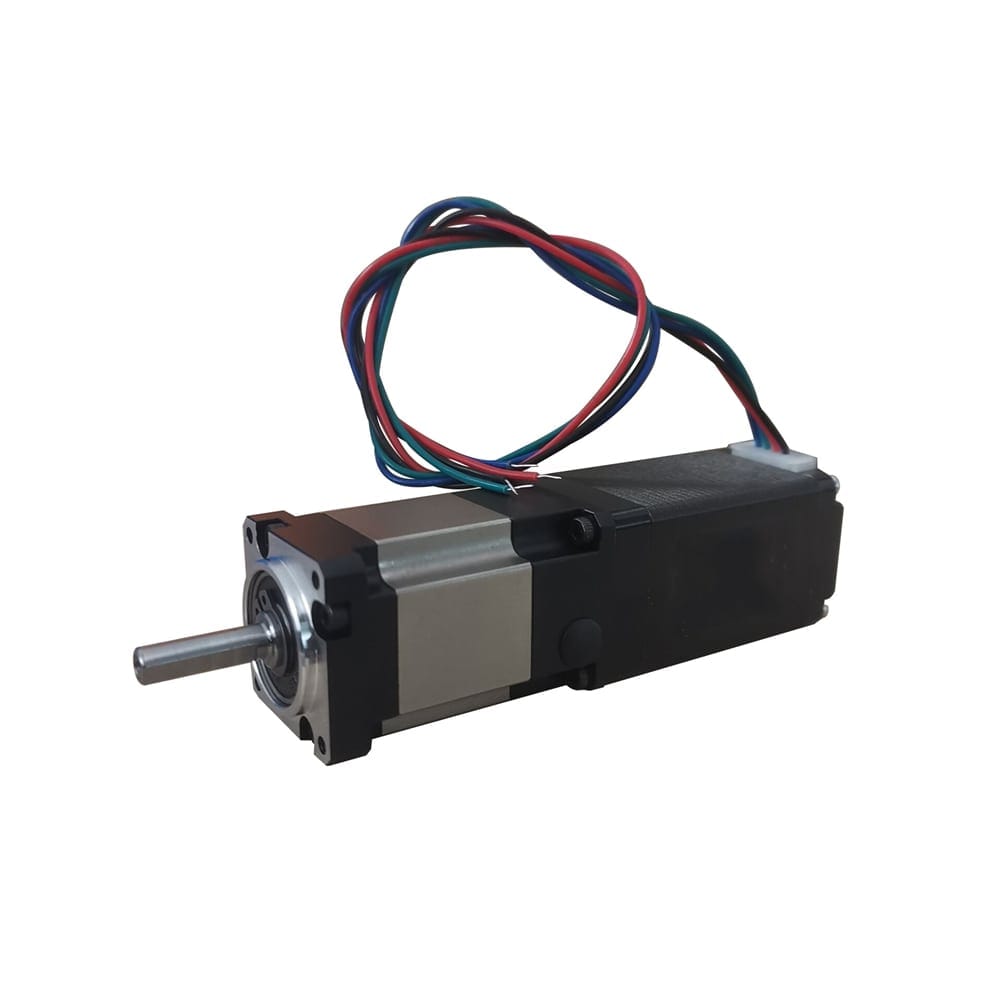

    NEMA 11 High Precision Geared Stepper Motor Reduction Ratio 20:1 Planetary Gearbox 15arc-min
