Size 38mm Planetary Geared DC Motor 12V 100RPM 1.0Nm 20W

$52.00

In Stock:

10

Model: 38WS64-12V-S100

Weight: 0.65KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

38mm Geared DC Motor 100RPM:  This compact size 38mm brushed dc motor has a rated voltage 12V and 20w power, integrated with a integrated with a strong planetary gearbox, which can generate a high torque output 1.0Nm and a low speed 75rpm.

38mm Geared DC Motor 100RPM Specification

  • Part Number: 38WS64-12V-S100
  • Rated Voltage: 12V
  • Rated Curent: 1.65A
  • Rated Power: 18W
  • Insulation Class: B
  • No-loaded Speed: 100RPM
  • Rated Speed: 75RPM
  • Rated Torque: 1.0Nm
  • Frame Size: Φ38mm
  • Body Length: 107.5mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 25mm
  • Number of Leads: 2
  • Lead Length: 300mm
  • Weight: 0.65kg

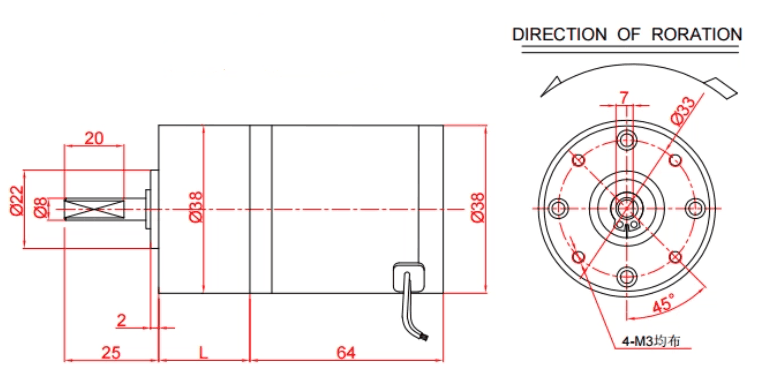

Overall Size

38mm Geared DC Motor 100RPM

L=43.5mm
