24V Closed Loop Stepper Servo Drive CL42D for NEMA 8, 11, 14, 17 Stepper Motor

$65.00

In Stock:

10

Model: CL42D

Weight: 0.6KG

Certificated: CE, RoHS

Brand: OKD Drive

Ships From China

10 in stock

The 24V Closed Loop Stepper Drive CL42D is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It provides an input voltage 24-50VDC and output current upto 3.0A. This servo drive controller CL42D is definitely capable of powering Closed Loop Stepper Motors of NEMA 8, 11, 14, 17.

24V Closed Loop Stepper Drive Specifications

  • Manufacturer Part Number: CL42D
  • Logic Input Voltage: 5V/24V
  • Output Current: 0.5-3.0A(2.1RMS)
  • Input Voltage: 24-50VDC
  • Microsteps: 200-51200
  • Pulse Input Frequency: 0-400kHz
  • In-position signal output/Brake Port
  • Output current set by rotary switch
  • Drive Mode: Double Pulse, Pulse+Direction
  • Incremental Encoder 1000PPR-5000PPR
  • Cooling: Natural cooling or forced cooling
  • Ambient Temperature: 0℃-50℃
  • Humidity: 40%RH-90%RH
  • Operating Temperature: 0℃-50℃
  • Storage Temperature: -20℃-65℃
  • Dimension: 116×69.2×26.5mm
  • Weight: 0.3kg

Overall Size

24V Closed Loop Stepper Drive

Reviews

There are no reviews yet.

Be the first to review “24V Closed Loop Stepper Servo Drive CL42D for NEMA 8, 11, 14, 17 Stepper Motor”

Your email address will not be published. Required fields are marked *

Tag: nema 11 closed loop, nema 14 closed loop, nema 17 closed loop, nema 23 closed loop, nema 24 closed loop, nema 34 closed loop, nema 8 closed loop, stepper drive

Related Products

  • 24V-stepper-motor-drive-m422d-0-3-2-2a

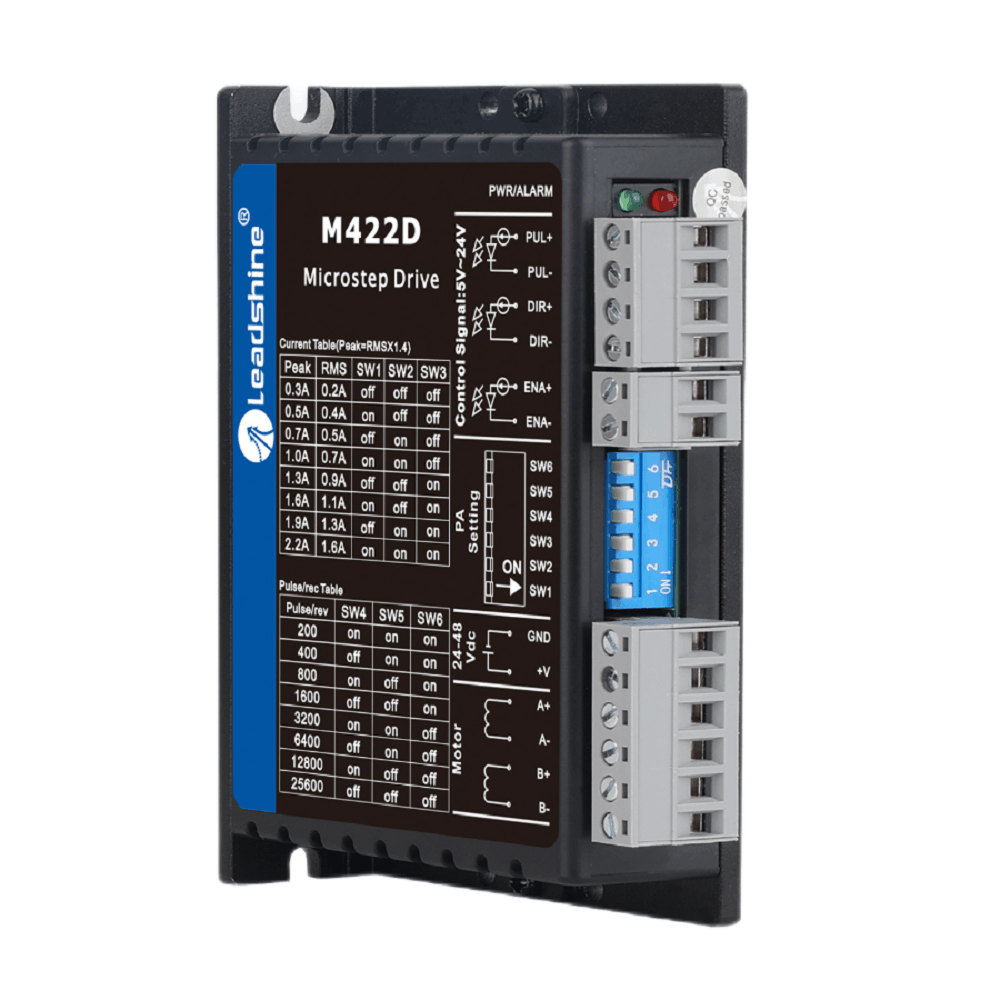

    Digital Stepper Drive M422D 0.3-2.2A 24-48VDC for 8, 11, 14, 17 Stepper Motor

    $35.00

  • 36v-brushless-dc-motor-drive-controller-bld-300

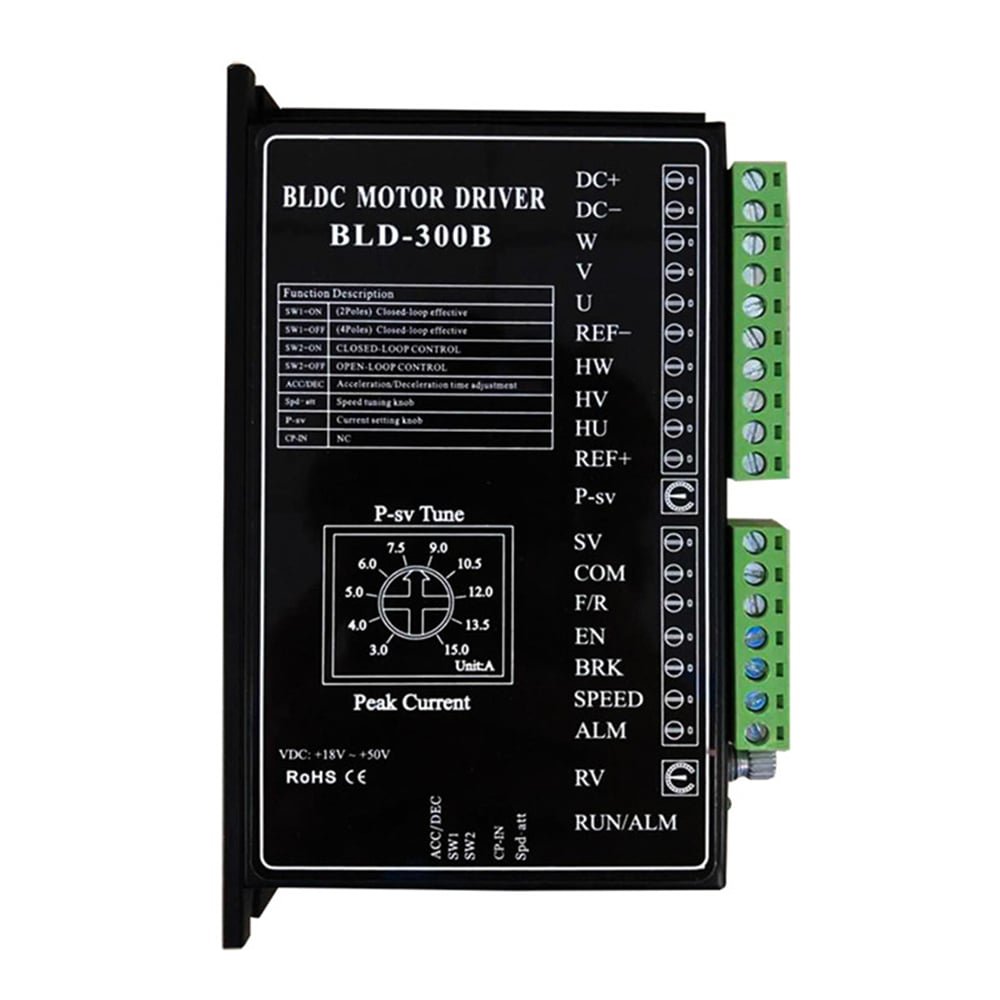

    Brushless DC Motor Drive Controller BLD-300B 12V-56VDC Max 15A 300W

    $32.00

  • 24v-brushless-dc-motor-drive-controller-bld-120a

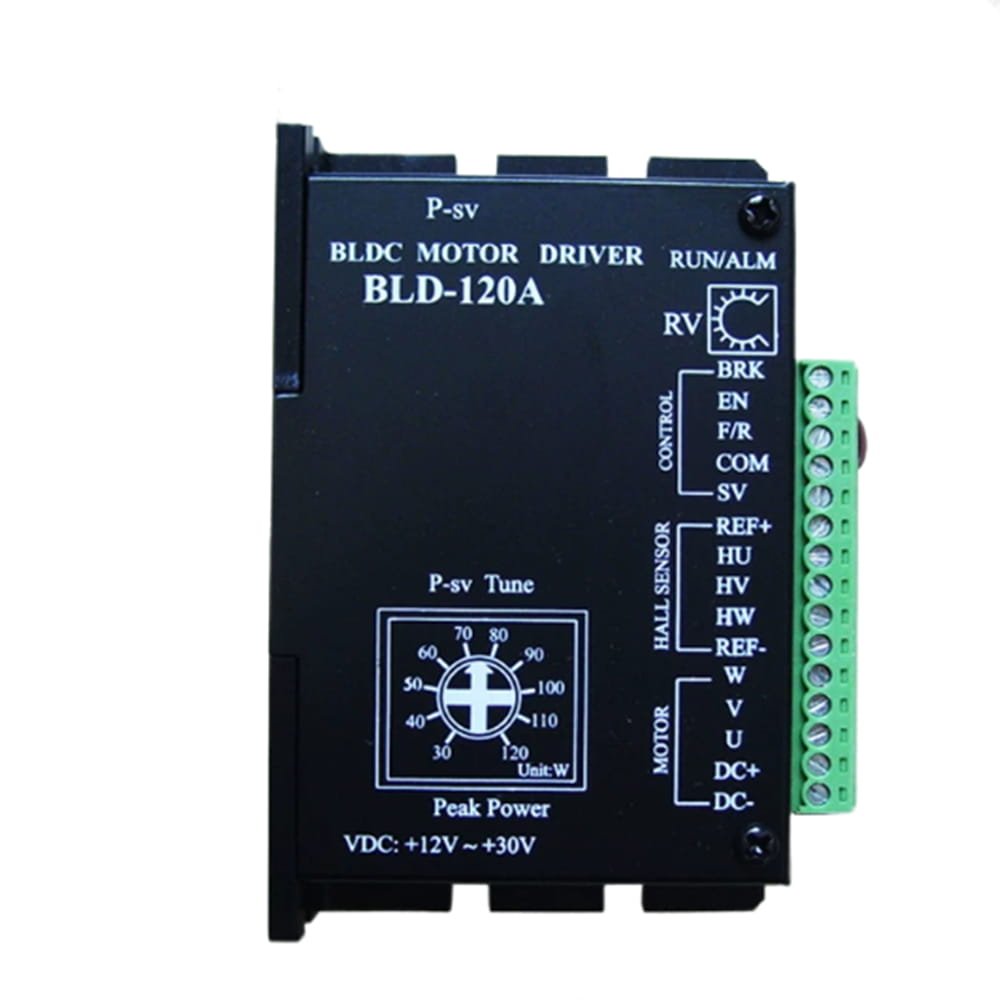

    Brushless DC Motor Drive Controller BLD-120A 12V-30VDC Max 8.0A 120W

    $32.00

  • 12v-brushelss-dc-motor-drive-controller-bld-70b

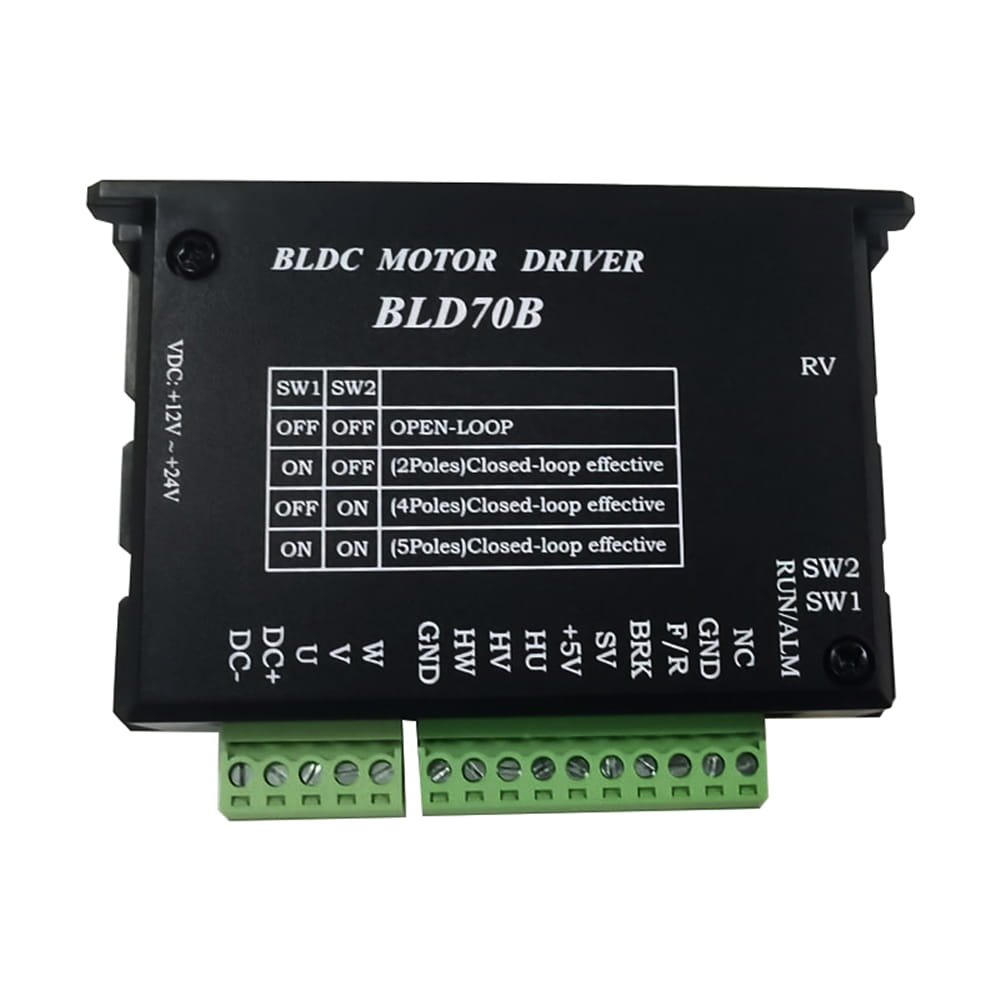

    Brushless DC Motor Drive Controller BLD-70B 12V-24VDC Max 4.5A 70W
