Stepper Drive DM870: The Leadshine model DM870 is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 20-75VDC and it can output up to 7.0A current. All the micro step and output current are done via DIP switches. Therefore, the DM542 are ideal choices for applications requiring simple step & direction control of 2 phase & 4 phase NEMA 23, 24, and 34 stepper motors.

Stepper Drive DM870 Specifications

CE certified and RoHS compliant
Brake connection port(max 30VDC)
5/24V logic input voltage
Pulse response frequency up to 200KHz
Pulse & Direction(PUL/DIR) or CW/CCW(double pulse) control
RS232 debugging interface
Auto-tuning to match wide-range 2 phase NEMA  23, 24, 34 stepper motors
Output Current: 1.4-7.0A(5.0RMS)
Idle current reduction to 50% or 90% selection via SW4
Input Voltage: +20-75VDC(Typical 24-36VDC)
Logic Signal Current: 7-16mA(Typical 10mA)
Pulse Input Frequency: 0-200kHz
Cooling: Natural cooling or forced cooling
Ambient Temperature: 0℃-50℃
Humidity: 40%-90%RH
Operating Temperature: 0℃-50℃
Storage Temperature: -20℃-65℃

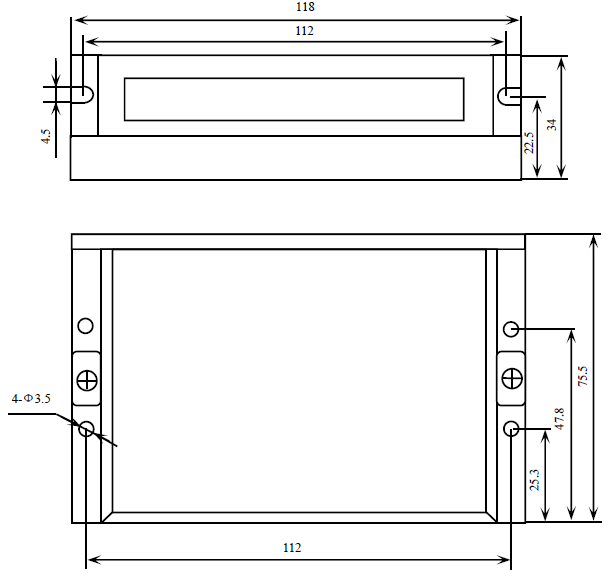

Dimensions: 118×75.5×34mm
Weight: 250g
