Size 20mm NEMA 8 Stepper Motor Long Axis 0.02Nm 0.6A 20x33mm

$10.50

In Stock:

20

Model: 20AI33-0604S

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

20 in stock (can be backordered)

NEMA 8 Stepper Motor Long Axis: This small size 20mm hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 33mm with a length of 20mm long axis output shaft. Each phase draws rated current 0.6A, allowing for a holding torque of 0.02Nm & optimal working speed upto 1000RPM. Please note this motor has a 16mm bolt spacing & 15mm pilot circle. More details, please refer to the data sheet of 20AI33-0604D20.

NEMA 8 Stepper Motor Long Axis Specification

  • Part Number: 20AI33-0604S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.02Nm
  • Rated Current/phase: 0.6A
  • Phase Resistance: 6.5ohms
  • Inductance: 1.5mH
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 20x20mm
  • Body Length: 33mm
  • Shaft Type: Round
  • Shaft Diameter: Φ4mm
  • Shaft Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 70g

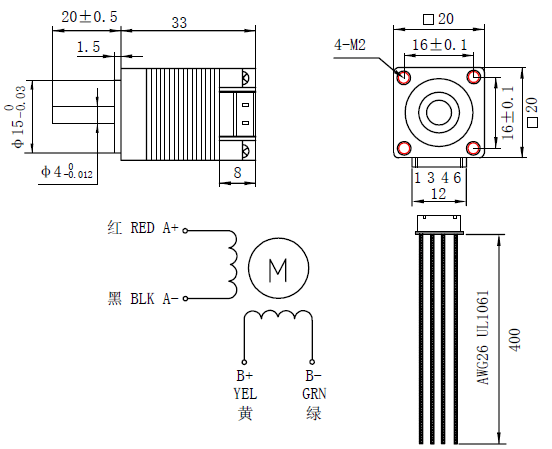

Overall Size

NEMA 8 Stepper Motor Long Axis
