NEMA 8 Stepper Motor Hollow Shaft 0.04Nm 0.6A 20x38mm

$19.90

In Stock:

20

Model: 20HB38-0604K12

Weight: 0.15KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

20 in stock (can be backordered)

NEMA 8 Stepper Motor Hollow Shaft: This small size 20mm NEMA 8 hollow shaft stepper motor has a body length 38mm with 0.6A rated current & holding torque 0.04Nm. A hollow shaft with outer diameter Φ5mm & inner diameter Φ2.5mm is available and also a double shaft with the front shaft length 12mm and rear shaft length 10mm is designed.

NEMA 8 Stepper Motor Hollow Shaft Specification

  • Part Number: 20HB38-0604K12
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.04Nm
  • Rated Current/phase: 0.6A
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 38mm
  • Shaft Type: Hollow Shaft
  • Inner Diameter: Φ2.5mm
  • Outer Diameter: Φ5.0mm
  • Front Shaft Length: 12mm
  • Rear Shaft Length: 10mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 80g

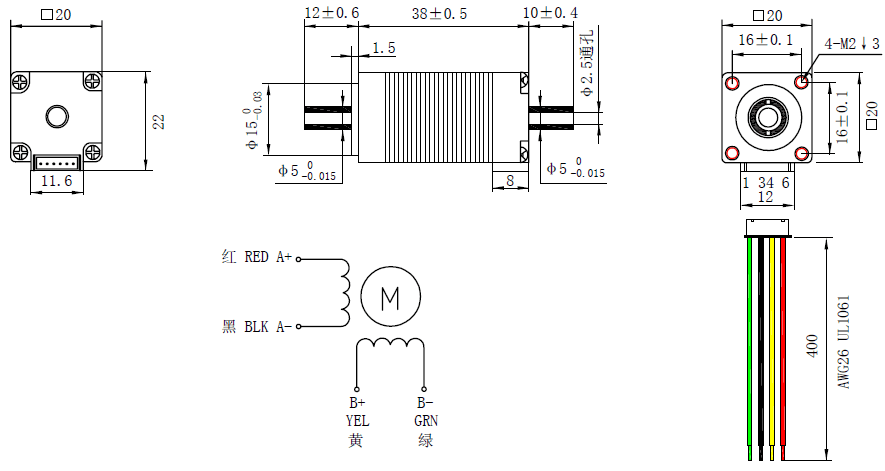

Overall Size

NEMA 8 Stepper Motor Hollow Shaft
