NEMA 8 Stepper Motor Hollow Shaft M5 Thread 0.018Nm 0.6A 20x30mm

$18.80

In Stock:

10

Model: 20HS30-0604KM

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

10 in stock (can be backordered)

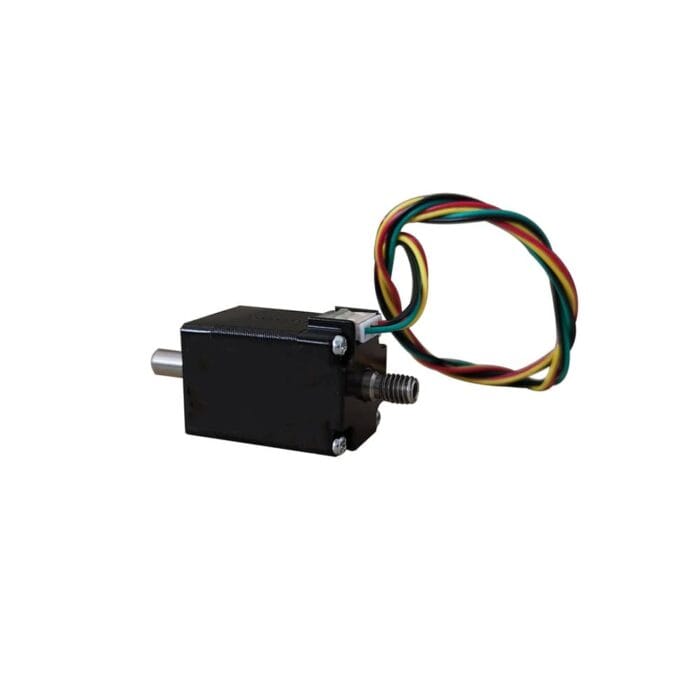

NEMA 8 Hollow Shaft Motor: This small size 20mm NEMA 8 hollow shaft stepper motor has a body length 30mm with 0.6A rated current & holding torque 0.018Nm. A hollow shaft with outer diameter Φ5mm & inner diameter Φ2.5mm is available and also a double shaft with the front shaft length 12mm and rear shaft length 8mm with M5 thread is designed.

NEMA 8 Hollow Shaft Motor Specification

  • Part Number: 20HS30-0604KM
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.018Nm
  • Rated Current/phase: 0.6A
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 30mm
  • Shaft Type: Hollow Shaft
  • Inner Diameter: Φ2.5mm
  • Outer Diameter: Φ5mm
  • Front Shaft Length: 12mm
  • Rear Shaft Length: 8mm with M5 thread
  • Number of Leads: 4 Leads
  • Length: 400mm
  • Weight: 60g

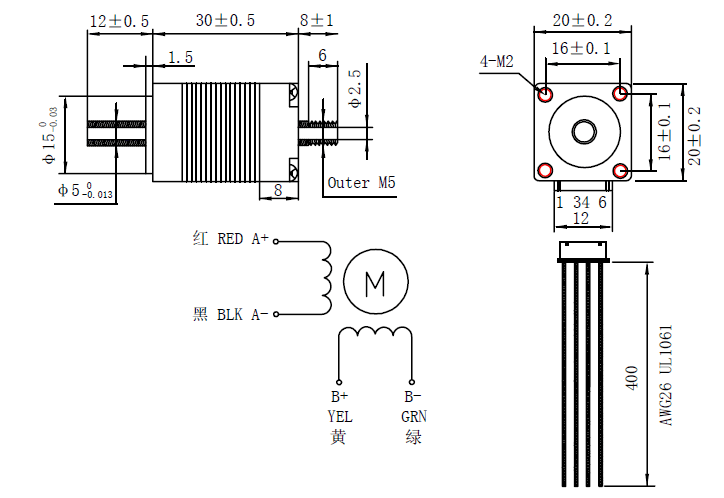

Overall Size

NEMA 8 Hollow Shaft Motor
