NEMA 8 Stepper Motor Dual Shaft L=38mm with Planetary Gearbox Gear Ratio 5:1

$30.00

In Stock:

5

Model: 20AI38-0604B-PG5

Weight: 0.2KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 8 Geared Stepper Motor Dual Shaft: This micro geared stepper motor dual shaft has a frame size 20x20mm with rated current 0.6a, integrated with a PG series planetary gearbox of gear ratio 4.75:1. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 8 Geared Stepper Motor Dual Shaft Specification

  • Part Number: 20AI38-0604B-PG5
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.04Nm w/o gearbox
  • Rated Current/phase: 0.6A
  • Frame Size: 20x20mm
  • Motor Length: 38mm
  • Number of Leads: 4
  • Lead Length: 280mm
  • Rear Shaft Diameter: Φ4mm
  • Rear Shaft Length: 10
  • Gearbox Type: Planetary
  • Gear Ratio: 4.75:1
  • Efficiency: 90%
  • Backlash at No-load: 1.0deg
  • Gearbox Length: 21.2mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 15mm
  • D-cut Length: 9mm

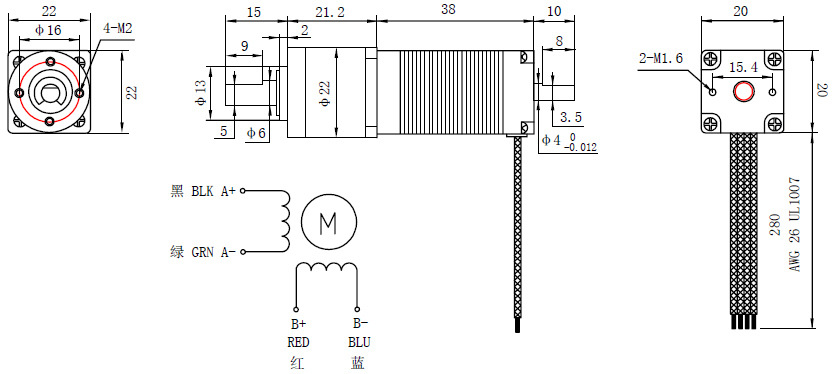

Overall Size

NEMA 8 Geared Stepper Motor Dual Shaft
