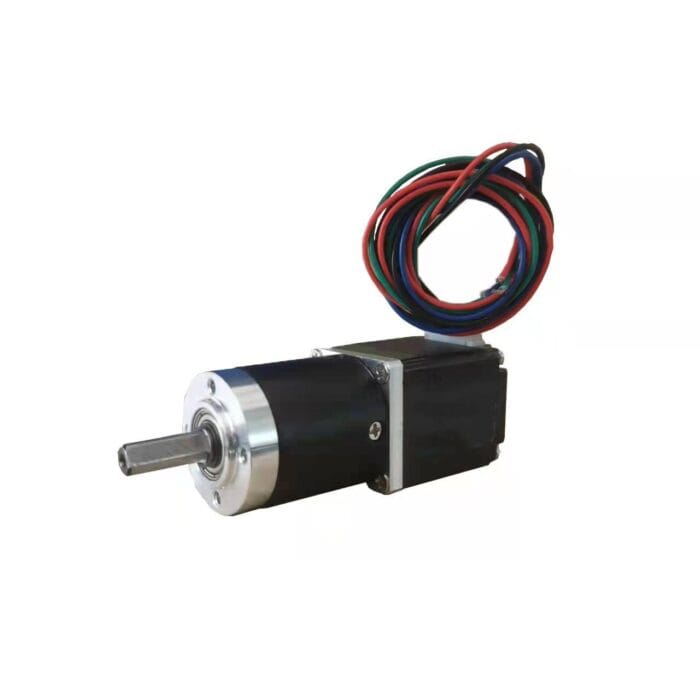

NEMA 11 Geared Stepper Motor 20-1 Precision Planetary Gearbox

NEMA 11 Geared Stepper Motor L=32mm with Ratio 20:1 Precision Planetary Gearbox

$65.00

In Stock:

10

Model: 28AI32-0674S-QG20

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 11 Precision Geared Reduction Motor: This small geared stepper motor has a frame size 28x28mm with rated current 0.67a, integrated with a low backlash precision planetary gearbox of gear ratio 20:1. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 11 Precision Geared Reduction Motor Specification

  • Part Number: 28AI32-0674S-QG20
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.07Nm w/o gearbox
  • Rated Current/phase: 0.67A
  • Frame Size: 28x28mm
  • Motor Length: 32mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 20:1
  • Efficiency: 90%
  • Backlash at No-load: 25arcmin
  • Gearbox Length: 36mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 15.5mm

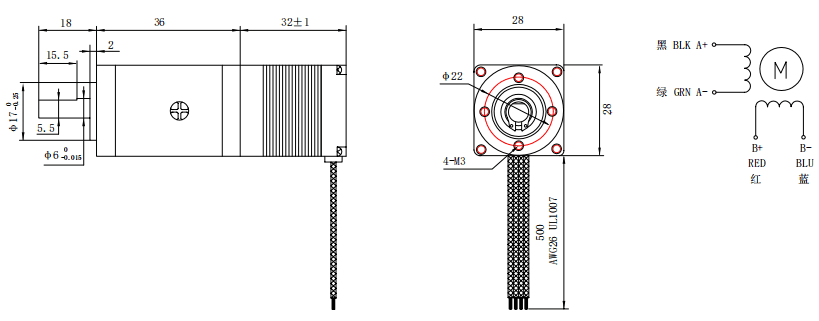

Overall Size

NEMA 11 Precision Geared Reduction Motor
