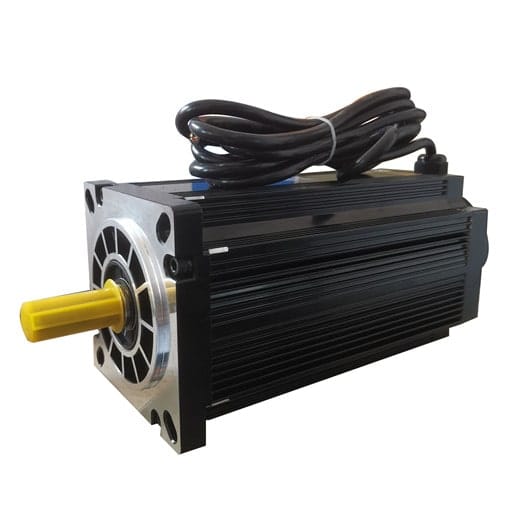

NEMA 51 Stepper Motor 1.2deg 50Nm 6.8A 130x283mm

3 Phase NEMA 51 Stepper Motor 1.2deg 50Nm 6.8A 130x283mm 3 Leads

$285.00

In Stock:

4

Model: 130AI283-6803S

Weight: 21KG

Certificated: ISO, CE, RoHS

Ships From China

4 in stock (can be backordered)

NEMA 51 Stepper Motor 50Nm: This size 130mm 3 Phase NEMA 51 hybrid bipolar stepping motor has a 1.2° step angle(300 steps/revolution) and a body length 283mm. Each phase draws a rated current 6.8A, allowing for a strong holding torque of 50Nm/7100oz.in.

NEMA 51 Stepper Motor 50Nm Specification

  • Part Number: 130AI283-6803S
  • Step Angle: 1.2deg
  • Holding Torque: 50Nm/7100oz.in.
  • Rated Current/phase: 6.8A
  • Phase Resistance: 0.99ohms
  • Inductance: 18.3mH
  • Driving Voltage: 110-220VAC
  • Frame Size: 130x130mm
  • Body Length: 245mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 50mm
  • Keyway Length: 31mm
  • Number of Leads: 3
  • Lead Length: 3000mm
  • Weight: 21kg
  • Stepper Drive: 3DM2283

Overall Size:

NEMA 51 Stepper Motor 50Nm
