3 Phase NEMA 42 Stepper Motor 1.2deg 8Nm 19mm Shaft

3 Phase NEMA 42 Stepper Motor 1.2deg 8.0Nm 4.3A 110x139mm 3 Leads

$125.00

In Stock:

4

Model: 110AI139-4303S

Weight: 5.5KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

4 in stock (can be backordered)

NEMA 42 Stepper Motor 8Nm: This size 110mm 3 Phase NEMA 42 hybrid bipolar stepping motor has a 1.2° step angle(300 steps/revolution) and a body length 139mm. Each phase draws a rated current 4.3A, allowing for optimal working speed upto 3000RPM & a strong holding torque of 8Nm/1136oz.in .

NEMA 42 Stepper Motor 8Nm Specification

  • Part Number: 110AI139-4303S
  • Step Angle: 1.2deg
  • Holding Torque: 8Nm/1136oz.in
  • Rated Current/phase: 4.3A
  • Phase Resistance: 1.0ohms
  • Inductance: 12.1mH
  • Insulation Class: B 130°C
  • Driving Voltage: 110-220VAC
  • Frame Size: 110x110mm
  • Body Length: 139mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 40mm
  • Keyway Length: 31mm
  • Number of Leads: 3
  • Lead Length: 3000mm
  • Weight: 5.5kg

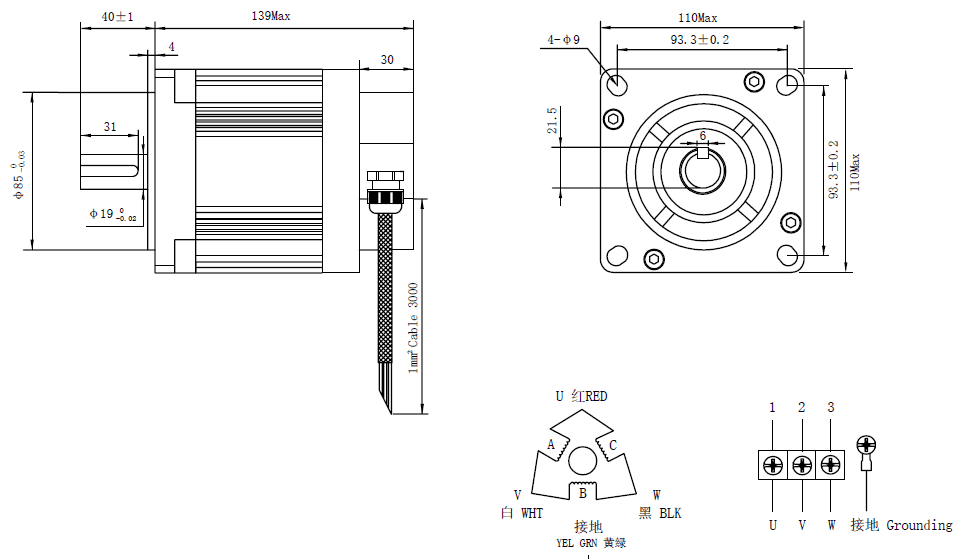

Overall Size:

NEMA 42 Stepper Motor 8Nm
