This iHSV60-30-20-36 size 60mm NEMA 24 integrated servo drive motor has a rated speed 3000RPM, strong power output 200W, rated torque 0.6Nm and a overall body length 117mm, integrated with a 1000 lines incremental encoder and 36VDC servo drive, which can solve the loss of step problems in open loop control system. It also has a very compact size and makes all components integrated together (encoder connection, servo drive board and motor wiring) to reduce interference, cut cable and labor costs, and save the mounting space. So this NEMA 24 Integrated Servo Motor 200W 3000RPM 0.65Nm is exactly reliable and affordable, and has excellent performances in many industrial applications such as CNC router, 3D printer, robotics. etc.
NEMA 24 Integrated Servo Motor 200W Specifications
- Number of Phase: 3
- Rated Voltage: 36VDC
- Rated Power: 200W
- Rated Speed: 3000RPM±7%
- No-load Speed: 4200RPM±7%
- Rated Current: 8.5A±20%
- Rated Torque: 0.65Nm
- Insulation Class: B
- Frame Size: 60x60mm
- Body Length: 117mm
- Shaft Diameter: 11mm
- Shaft Length: 30mm
- Control Mode: Pulse+Direction
- Pulse Voltage: 5.0V
- Pulse Frequency: 250K
- Communication Interface: RS232

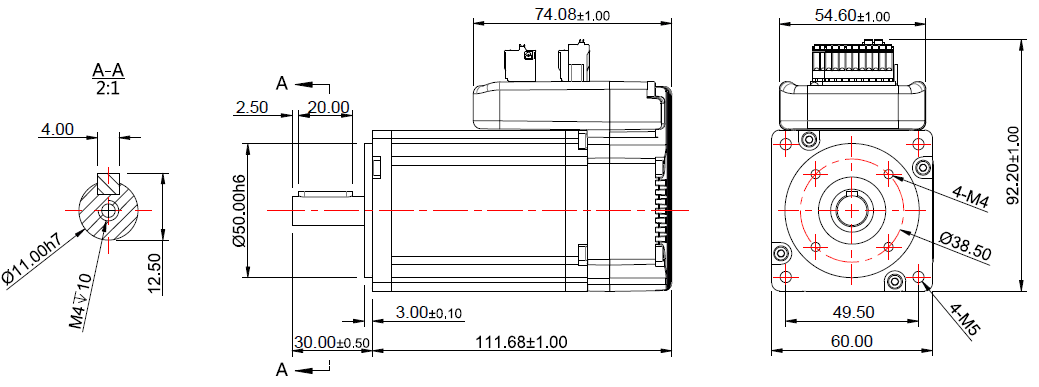

Overall Size
