Size 57mm NEMA 23 Stepper Motor Waterproof IP65 1.5Nm 4A 57x65mm

Size 57mm NEMA 23 Stepper Motor Waterproof IP65 1.5Nm 4A 57x65mm

$25.00

In Stock:

10

Model: 57AI65-IP65

Weight: 0.85KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 23 Stepper Motor Waterproof: This size 57-65mm NEMA 23 stepper motor has 1.5Nm holding torque with an IP65 waterproof rating, which means this IP65 stepper motor can be fully protected against dust, and also can be protected against low pressure jets if water from all directions and limited ingress permitted.

NEMA 23 Stepper Motor Waterproof Specification

NEMA 23 Stepper Motor Waterproof

  • Part Number: 57AI65-IP65
  • Step Angle: 1.8deg
  • Holding Torque: 1.5Nm
  • Rated Current/phase: 4.0A
  • Driving Voltage: 24-48VDC
  • Protection Grade: IP65
  • Frame Size: 57x57mm
  • Body Length: 65mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 0.95kg
  • Steppe Drive: DM556

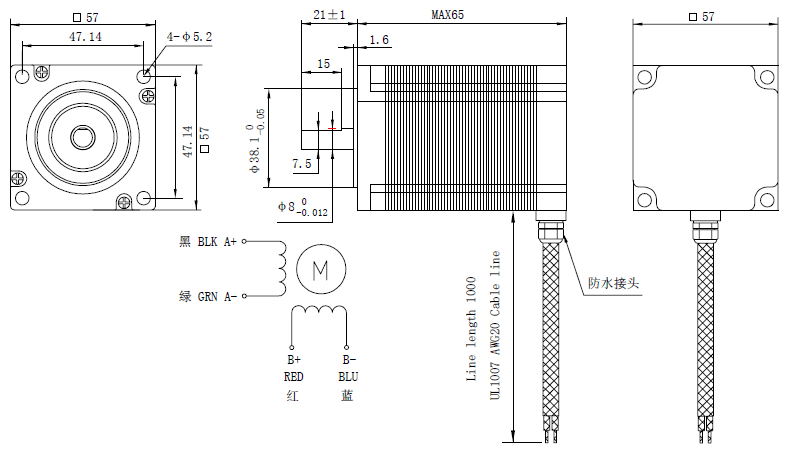

Overall Size

57AI65-IP65 Datasheet
