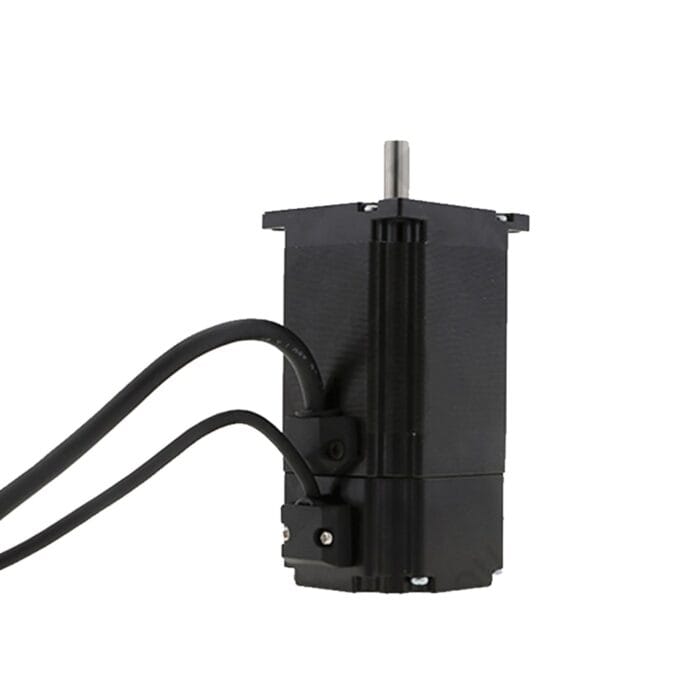

Size 57mm NEMA 23 Stepper Motor 1.8Nm with 24V Electromagnetic Brake

$75.00

In Stock:

5

Model: NEMA 23 Stepper Motor Brake

Weight: 1.55KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 23 Stepper Motor Brake: This big NEMA 23 stepper motor has a frame size 57x76mm, good holding torque 1.8nm with rated current 4.2A, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 23 Stepper Motor Brake Specification

  • Part Number: 57AI76-4204YS2
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 1.8Nm
    Rated Current/phase: 4.2A
    Driving Voltage: 24-72VDC
    Frame Size: 57x57mm
    Body Length: 108mm
    Shaft Diameter: Φ8mm
    Shaft Length: 21mm
    D-cut Length: 18mm
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC
  • Stepper Drive: DM556

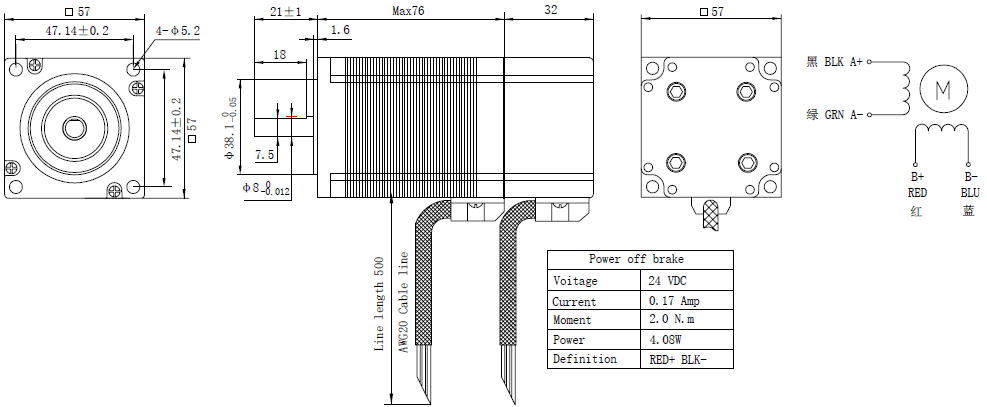

Overall Size

NEMA 23 Stepper Motor Brake
