Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 2Nm 4.2A 57x76mm 4 Wires Φ8mm Shaft

Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 2Nm 4.2A 57x76mm 4 Wires Φ8mm Shaft

$12.50

In Stock:

50

Model: 57AI76-4204S

Weight: 1.3KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

NEMA 23 2Nm Motor: This size 57mm NEMA 23 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 76mm. Each phase draws a current 4.2A, allowing for a strong holding torque of 2.0Nm. Please note this motor has a diameter 8mm output shaft.

NEMA 23 2Nm Motor Specification

NEMA 23 2Nm Motor

  • Part Number: 57AI76-4204S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 2.0Nm
  • Rated Current/phase: 4.2A
  • Phase Resistance: 0.6ohms
  • Inductance: 1.8mH
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-cut Length: 18mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.1kg
  • Stepper Drive: DM556

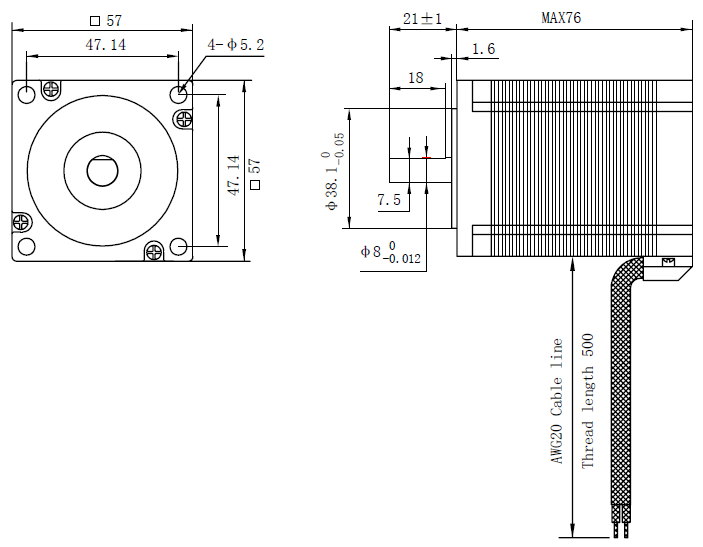

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
