Size 57mm NEMA 23 Short Stepper Motor Bipolar 1.8deg 0.33Nm 0.9A 57x25mm 4 Wires

Size 57mm NEMA 23 Short Stepper Motor Bipolar 1.8deg 0.33Nm 0.9A 57x25mm 4 Wires

$11.50

In Stock:

10

Model: 57AI25-094A-24Y

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 23 Short Body: This size 57mm NEMA 23 short hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a ultrathin body length 25mm. Each phase draws a current 0.9A, allowing for a strong holding torque of 0.33Nm.

NEMA 23 Short Body Specification

  • Part Number: 57AI25-094A-24Y
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.33Nm
  • Rated Current/phase: 0.9A
  • Phase Resistance: 3.4ohms
  • Inductance: 4.5mH
  • Driving Voltage: 24-48VDC
  • Frame Size: Φ57mm
  • Body Length: 25mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 250g

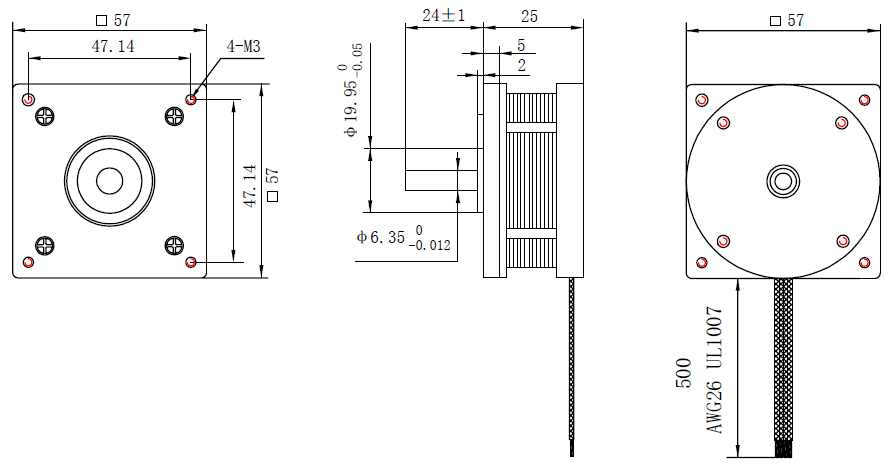

Overall Size

NEMA 23 Short Body

Black: A+, Green A-; Red: B+, Blue: B-
