Size 57mm NEMA 23 L=76mm Economy Worm Gearbox Right-angle Reduction Stepper Motor

Size 57mm NEMA 23 L=76mm Economy Worm Gearbox Right-angle Reduction Stepper Motor

$70.00

In Stock:

20

Model: 57AI76-4204S-ZGXX

Weight: 2.1KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 23 Right angle Reduction Motor: This big geared stepper motor has a frame size 57-76mm with rated current 4.2a, integrated with ZG series right-angle worm reduction gearbox that has a wide range of gear ratio 3 to 100. It is an ideal choice for the applications that require high torque or low speed but high precision motion control and right-angle working.

NEMA 23 Right angle Reduction Motor Specification

NEMA 23 Right angle Reduction Motor

  • Part Number: 57AI76-4204S-ZGXX
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 2.0Nm w/o gearbox
  • Rated Current/phase: 4.2A
  • Frame Size: 57x57mm
  • Motor Length: 76mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Worm
  • Gear Ratio: 15-545:1
  • Efficiency: 80%-60%
  • Backlash at No-load: 3deg-4deg
  • Gearbox Length: 82mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Stepper Drive: DM556

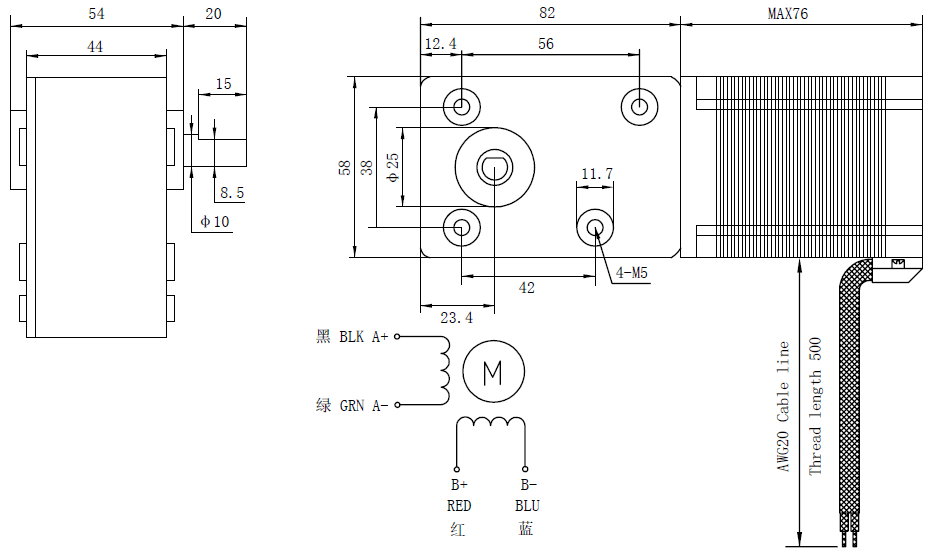

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
