Size 57mm NEMA 23 Closed-loop Stepper Motor Waterproof IP65 2.2Nm with 1000CPR Encoder

Size 57mm NEMA 23 Closed-loop Stepper Motor Waterproof IP65 2.2Nm with 1000CPR Encoder

$65.00

In Stock:

10

Model: 57AI80EC-IP65

Weight: 1.3KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 23 Closed loop Stepper Motor Waterproof: This size 57-80mm NEMA 23 closed-loop stepper motor has 2.2Nm holding torque with an IP65 waterproof rating, which means this IP65 stepper motor can be fully protected against dust, and also can be protected against low pressure jets if water from all directions and limited ingress permitted.

NEMA 23 Closed loop Stepper Motor Waterproof Specification

NEMA 23 Closed loop Stepper Motor Waterproof

  • Part Number: 57AI80EC-IP65
  • Step Angle: 1.8deg
  • Holding Torque: 2.2Nm
  • Rated Current/phase: 5.0A
  • Driving Voltage: 24-48VDC
  • Protection Grade: IP65
  • Frame Size: 57x57mm
  • Body Length: 104mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 1.3kg
  • Stepper Drive: CL57C

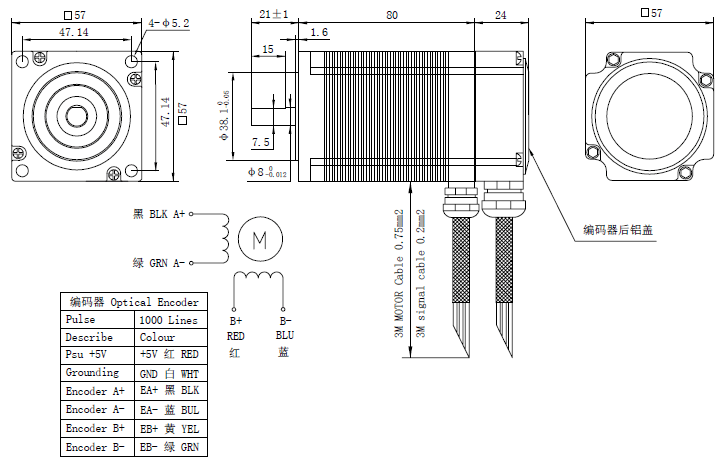

Overall Size

57AI80EC-IP65 Datasheet
