Size 57mm NEMA 23 Linear Actuator Stepper Motor Balll Screw 56mm Stack Lead 4mm Length 200mm

Size 57mm NEMA 23 Linear Actuator Stepper Motor Balll Screw 56mm Stack Lead 4mm Length 200mm

$75.00

In Stock:

5

Model: 57AI56-3004G-200N1204

Weight: 1.2KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 23 Ball Screw Stepper Motor: This size 57mm model is a NEMA 23 External type ball screw linear stepper motor with a 56mm body length, 1.8 degree step angle and 3.0A rated current. It is integrated with a Φ12mm diameter, 200mm ball screw length and a ball screw nut, the linear travel is 4mm per revolution/0.02mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 23 Ball Screw Stepper Motor Specification

NEMA 23 Ball Screw Stepper Motor

  • Part Number: 57AI56-3004G-200N1204
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 3.0A
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 56mm
  • Lead Screw Length: 200mm
  • Lead Screw Diameter: Φ12mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 0.7kg
  • Stepper Drive: DM542

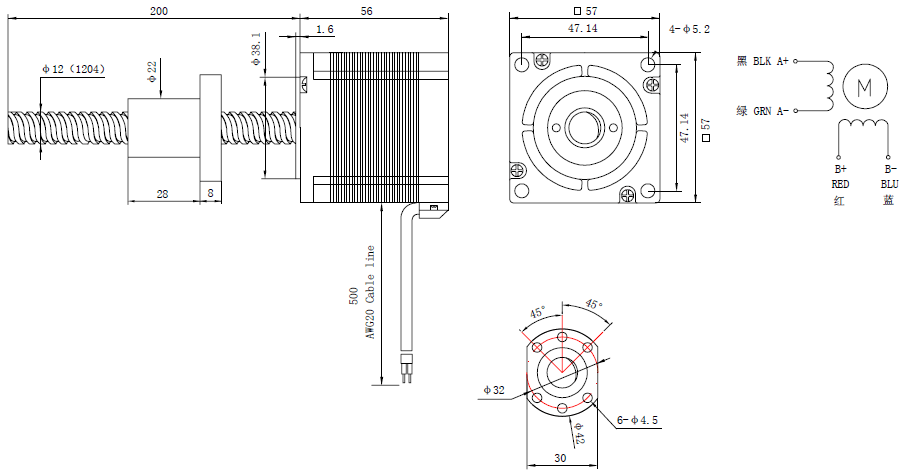

Overall Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
