NEMA 17 Stepper Motor Bipolar 1.8deg 0.12Nm 0.6A 42x28mm

Size 42mm NEMA 17 Stepper Motor Bipolar 1.8deg 0.12Nm 0.6A 42x28mm 4 Wires

$8.10

In Stock:

20

Model: 42AI28-064A-C1

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

NEMA 17 Stepper Motor 28mm: This compact size 42mm NEMA 17 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a ultrthin body length 28mm. Each phase draws current 0.6A, allowing for a holding torque of 0.12Nm.

NEMA 17 Stepper Motor 28mm Specification

  • Part Number: 42AI28-064A-C1
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.12Nm
  • Rated Current/phase: 0.6A
  • Phase Resistance: 8ohms
  • Inductance: 10mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 28mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 22mm
  • D-cut Length: 18mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 240g
  • Stepper Drive: FLKH2D0228DC

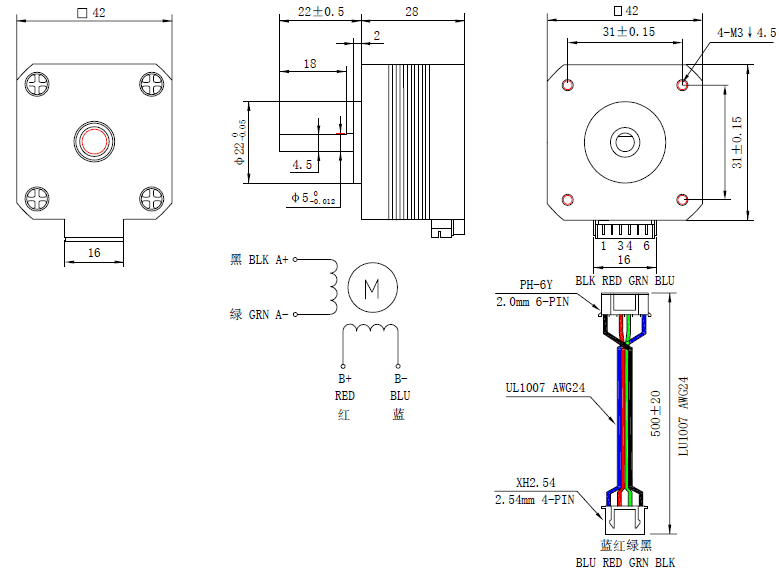

Overall Size

NEMA 17 Stepper Motor 28mm
