Size 42mm NEMA 17 Stepper Motor Bipolar 1.8deg 0.14Nm 1A 42x20mm 4 Wires

Size 42mm NEMA 17 Stepper Motor Bipolar 1.8deg 0.14Nm 1A 42x20mm 4 Wires

$5.90

In Stock:

50

Model: 42AI20-1004A

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

NEMA 17 Stepper Motor 20mm: This compact size 42mm NEMA 17 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a ultrthin body length 20mm. Each phase draws current 1.0A, allowing for a strong holding torque of 0.14Nm. This ultrathin NEMA 17 is absolutely an good choice for various extruders and 3D printers.

NEMA 17 Stepper Motor 20mm Specification

NEMA 17 Stepper Motor 20mm

  • Part Number: 42AI20-1004A
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.14Nm
  • Rated Current/phase: 1.0A
  • Phase Resistance: 3.5ohms
  • Inductance: 4.5mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 20mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 16.5mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 200g
  • Stepper Drive: FLKH2D1228DC

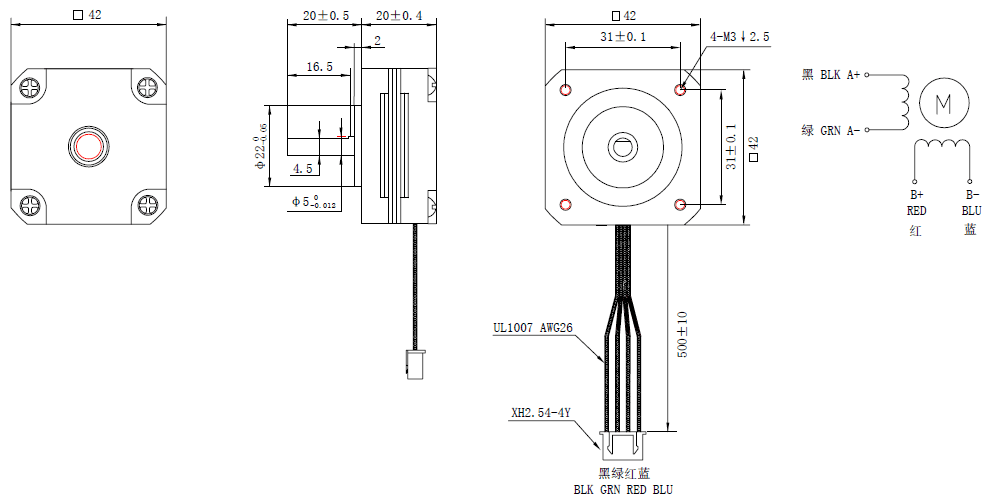

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
