Size 42mm NEMA 17 Stepper Motor 3D Printer Extruder 0.15Nm 0.5A 42x20mm

Size 42mm NEMA 17 Stepper Motor 3D Printer Extruder 0.15Nm 0.5A 42x20mm

$6.50

In Stock:

10

Model: 42AI20-0504M1

Weight: 0.15KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 17 Stepper Motor 20mm: This size 42mm NEMA 17 pancake stepper motor has a ultrathin body length 20mm, each phase draws 0.5A current and 0.15Nm holding torque. A 14 teeth hobbing shaft with length 11mm is available.

NEMA 17 Stepper Motor 20mm Specification

NEMA 17 Stepper Motor 20mm

  • Part Number: 42AI20-0504M1
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.15Nm
  • Rated Current/phase: 0.5A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 22mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 19mm
    Number of Teeth: 20
  • Gear Module: 0.3
  • Number of Leads: 4
  • Lead Length: 160mm
  • Weight: 150g
  • Stepper Drive: FLKH2D1228DC

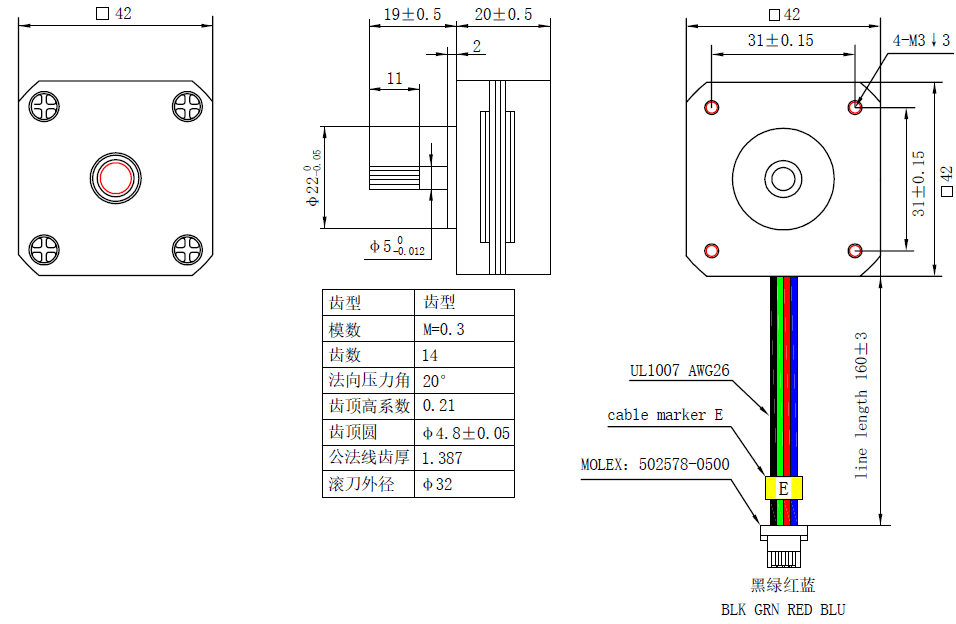

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
