Size 42mm NEMA 17 L=34mm Precision Short Planetary Gearbox Stepper Motor Gear Ratio 10:1

Size 42mm NEMA 17 L=34mm Precision Short Planetary Gearbox Stepper Motor Gear Ratio 10:1

$55.00

In Stock:

10

Model: 42AI34-HG10-32D

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 17 Short Geared Stepper: This compact geared stepper motor has a frame size 42x42mm with rated current 1.33a, integrated with a very short customzied precision planetary gearbox of gear ratio 10:1 taht has a quite long output axis 32mm. It is specially designed for the robot but also can work for the applications that require high torque or low speed but high precision motion control.

NEMA 17 Short Geared Stepper Specification

  • Part Number: 42AI34-HG10-32D
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.32Nm w/o gearbox
  • Rated Current/phase: 1.33A
  • Frame Size: 42x42mm
  • Motor Length: 34mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Gearbox Type: Planetary
  • Gear Ratio: 10:1
  • Efficiency: 96%
  • Backlash at No-load: 15arcmin
  • Gearbox Length: 28mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 32mm
  • D-cut Length: 29mm

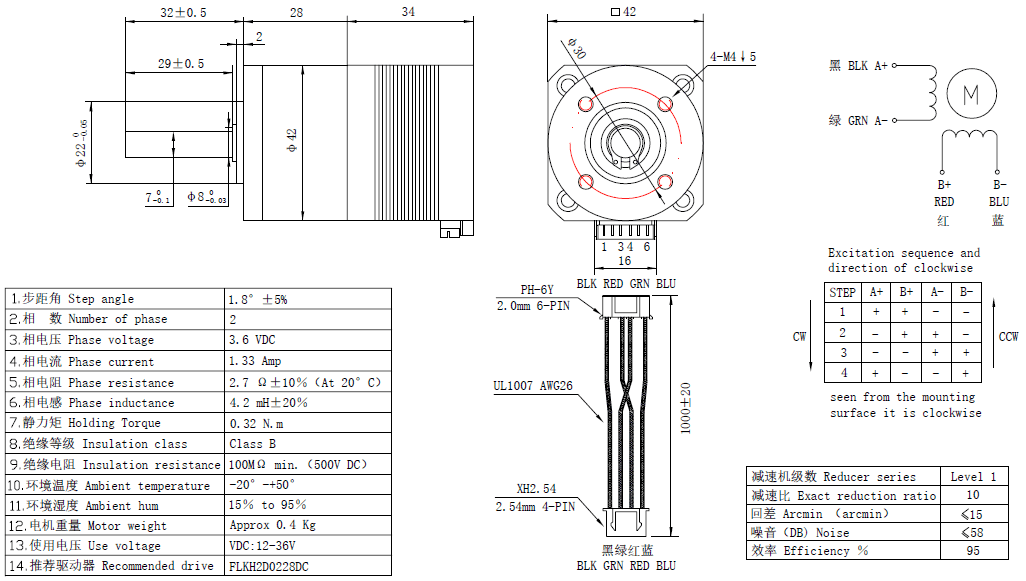

Overall Size

NEMA 17 Short Geared Stepper
