Size 42mm NEMA 17 Closed-Loop Stepper Servo Motor 0.45Nm/0.59Nm/0.7Nm with 1000CPR Encoder & Electromagnetic Brake

Size 42mm NEMA 17 Closed-Loop Stepper Servo Motor 0.45Nm/0.59Nm/0.7Nm with 1000CPR Encoder & Electromagnetic Brake

$70.00 – $80.00

In Stock:

10

Model: 42AIEC-YS

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 17 motor with encoder and brake: This frame size 42-42mm series NEMA 17 closed loop stepper motors, equipped with a 1000cpr incremental optical encoder & 24v electromagnetic brake, have strong holding torque 0.45Nm, 0.59Nm and 0.75Nm. These high performance motors are an definitely ideal choice for the applications that require frequently stop and run or vertical working. Recommended drive: Leadshine CL42C Closed-Loop Stepper Motor Drive

NEMA 17 motor with encoder and brake Specification

NEMA 17 motor with encoder and brake

  • Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Driving Voltage: 12-24VDC
    Frame Size: 42x42mm
    Encoder Type: Incremental Optical
    Encoder Resolution: 1000CPR
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC
    42AI40EC-YS: 0.45Nm, 2.0A, total Length=92mm
    42AI48EC-YS: 0.59Nm, 2.0A, total Length=100mm
    42AI60EC-YS: 0.75Nm, 2.1A, total Length=112mm

Only need motor with brake, we recommend:

Model: 42AI48-1684YS-12V – NEMA 17 Stepper Motor 0.55Nm With 12V Electromagnetic Brake

Model: 42AI48-2004YS – NEMA 17 Stepper Motor 0.59Nm With 24V Electromagnetic Brake

Model: 42AI60-2104YS – NEMA 17 Stepper Motor 0.7Nm With 24V Electromagnetic Brake

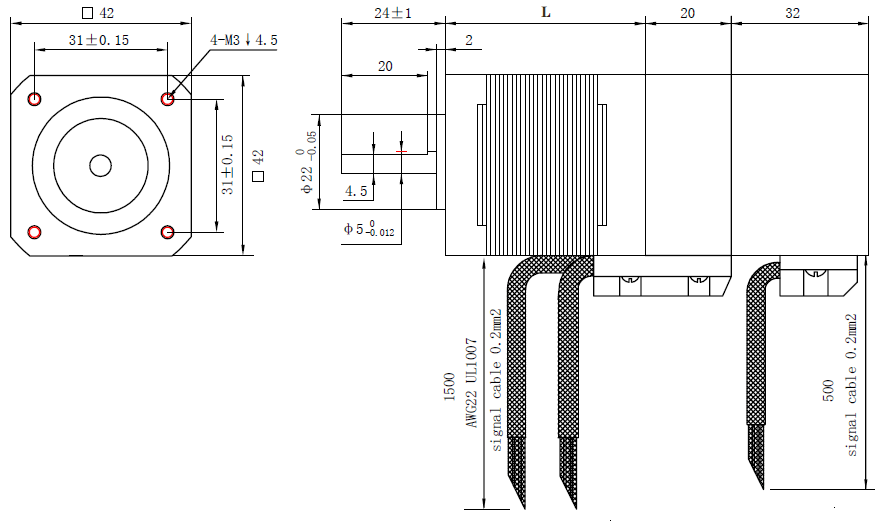

Overall Size

Brake 2 Leads Connection: A+(Red), A-(Black)
Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)
Encoder 6 Leads Connection: A+(Black), A-(Blue); B+(Yellow), B-(Green), 5V(Red), GND((White)

If you need a PDF data sheet, please send an email to: info@frankhumotor.com!
