Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 34mm Stack Lead 2mm Length 100mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 34mm Stack Lead 2mm Length 100mm

$40.00

In Stock:

5

Model: 42AI34-0404E-100NF2

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Linear Stepper Lead 2mm: This size 42mm model is a NEMA 17 External type lead screw linear actuator stepper motor with a 34mm body length, 1.8 degree step angle and 0.4A rated current. It is integrated with a Φ6.35mm diameter, 100mm lead screw length and a POM screw nut, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Linear Stepper Lead 2mm Specification

NEMA 17 Linear Stepper Lead 2mm

  • Part Number: 42AI34-0404E-100NF2
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.4A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 34mm
  • Lead Screw Length: 100mm
  • Lead Screw Diameter: Φ6.35mm
  • Lead/Revolution: 2mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 250g
  • Stepper Drive: FLKH2D1228DC

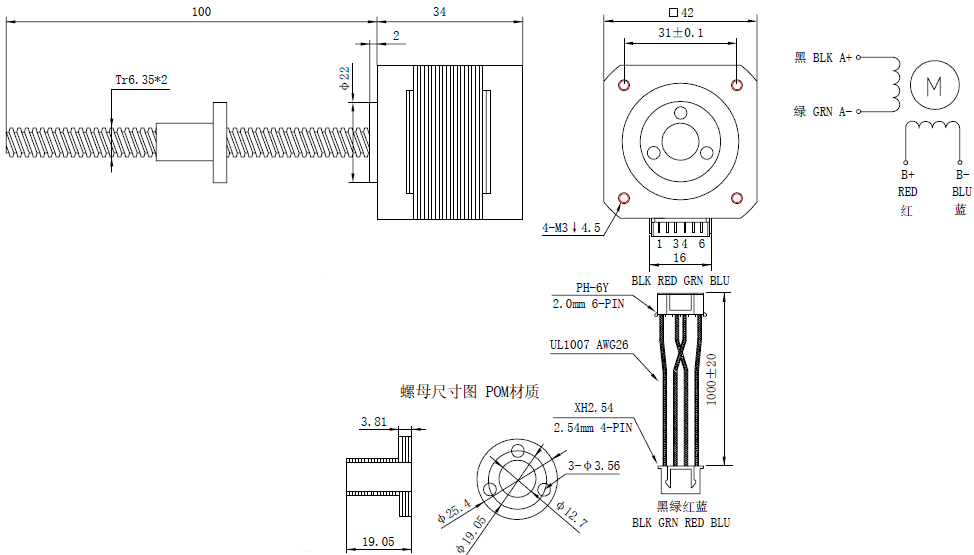

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
