Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 40mm Stack Lead 8mm Length 120mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 40mm Stack Lead 8mm Length 120mm

$42.00

In Stock:

5

Model: 42AI40-2004E-120N88

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Linear Actuator Stepper 40mm: This size 42mm model is a NEMA 17 External type lead screw linear actuator stepper motor with a 40mm body length, 1.8 degree step angle and 2.0A rated current. It is integrated with a Φ8mm diameter, 120mm lead screw length and a copper screw nut, the linear travel is 8mm per revolution/0.04mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Linear Actuator Stepper 40mm Specification

  • Part Number: 42AI40-2004E-120N88
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 40mm
  • Lead Screw Length: 120mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 8mm
  • Lead/Step: 0.04mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 300g

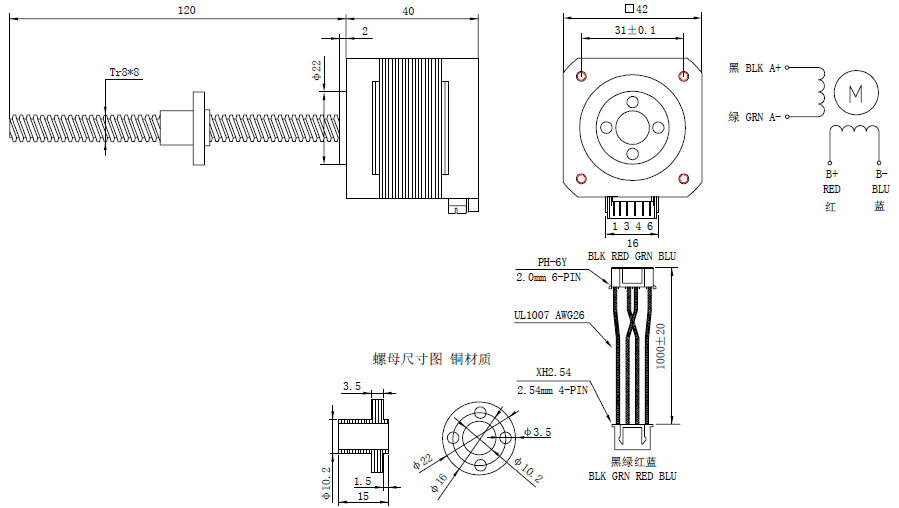

Overall Size

NEMA 17 Linear Actuator Stepper 40mm
