Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 34mm Stack Lead 8mm with Anti-backlash Nut

Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 34mm Stack Lead 8mm with Anti-backlash Nut

$42.00

In Stock:

5

Model: 42AI34-0404E-200N88C1

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Linear Actuator Motor Anti-backlash Nut: This size 42mm model is a NEMA 17 External type lead screw linear actuator stepper motor with a 34mm body length, 1.8 degree step angle and 0.4A rated current. It is integrated with a Φ8mm diameter, 200mm lead screw length and a anti-backlash POM screw nut, the linear travel is 8mm per revolution/0.04mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Linear Actuator Motor Anti-backlash Nut Specification

NEMA 17 Linear Actuator Motor Anti-backlash Nut

  • Part Number: 42AI34-0404E-200N88C1
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.4A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 34mm
  • Lead Screw Length: 200mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 8mm
  • Lead/Step: 0.04mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 250g
  • Stepper Drive: FLKH2D1228DC

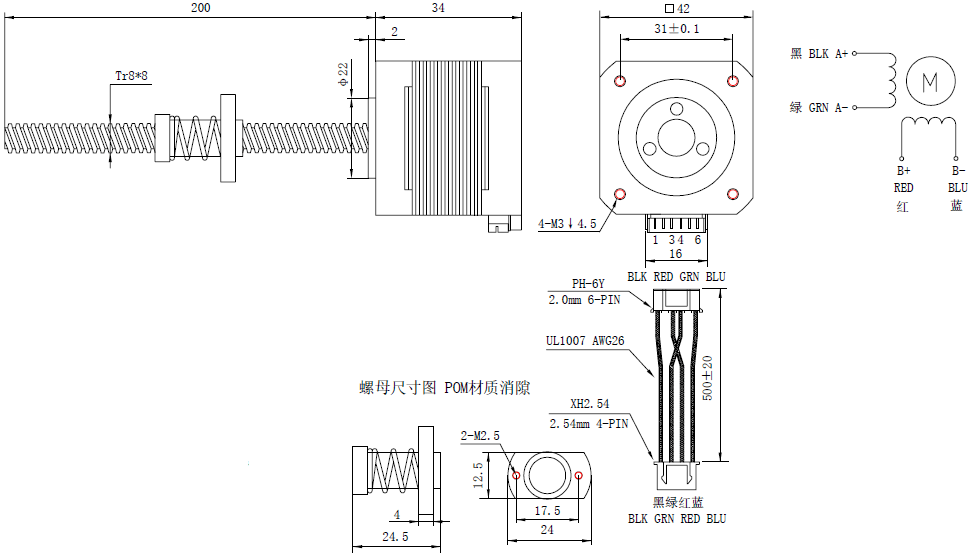

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
