Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 34mm Stack Lead 8mm Length 200mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 34mm Stack Lead 8mm Length 200mm

$40.00

In Stock:

5

Model: 42AI34-0404E-200N88

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Lead Screw Stepper Motor 34mm: This size 42mm model is a NEMA 17 External type lead screw linear actuator stepper motor with a 34mm body length, 1.8 degree step angle and 0.4A rated current. It is integrated with a Φ8mm diameter, 200mm lead screw length and a POM screw nut, the linear travel is 8mm per revolution/0.04mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Lead Screw Stepper Motor 34mm Specification

NEMA 17 Lead Screw Stepper Motor 34mm

  • Part Number: 42AI34-0404E-200N88
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.4A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 34mm
  • Lead Screw Length: 200mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 8mm
  • Lead/Step: 0.04mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 250g
  • Stepper Drive: FLKH2D1228DC

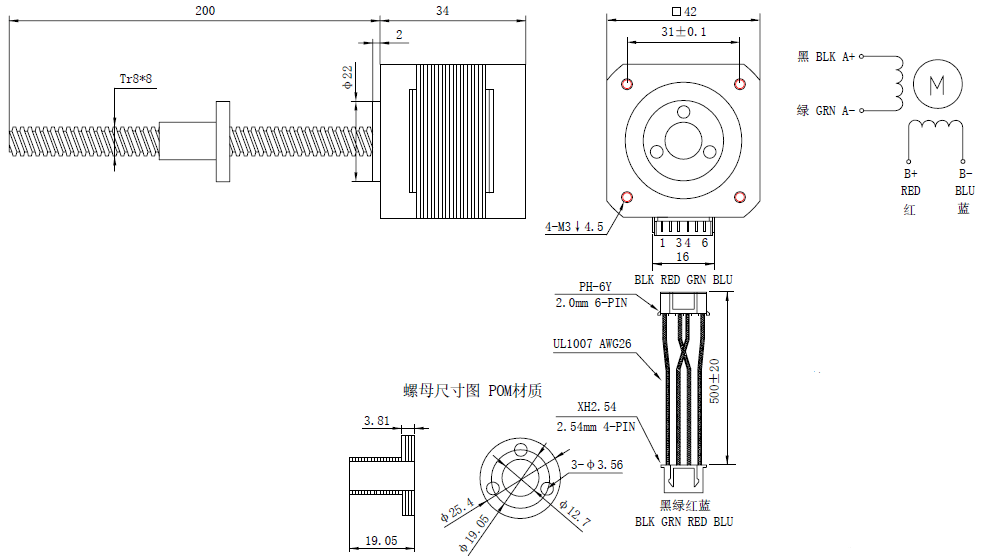

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
