Size 42mm NEMA 17 Planetary Gearbox Stepper Motor Waterproof IP65 Gear Ratio 10:1

Size 42mm NEMA 17 Planetary Gearbox Stepper Motor Waterproof IP65 Gear Ratio 10:1

$60.00

In Stock:

10

Model: 42AI48IP65-HG10

Weight: 0.15KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 17 Geared Stepper Motor Waterproof: This size 42-48mm NEMA 17 geared stepper motor has high torque output with an IP65 waterproof rating for both motor and gearbox, which means this IP65 stepper motor can be fully protected against dust, and also can be protected against low pressure jets if water from all directions and limited ingress permitted.

NEMA 17 Geared Stepper Motor Waterproof Specification

NEMA 17 Geared Stepper Motor Waterproof

  • Part Number: 42AI48IP65-HG10
  • Step Angle: 1.8deg without gearbox
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.45Nm without gearbox
  • Rated Current/phase: 2.0A
  • Driving Voltage: 12-24VDC
  • Protection Grade: IP65
  • Frame Size: 42x42mm
  • Motor Length: 48mm
  • Gearbox Length: 43mm
  • Gear Ratio: 10:1
  • Shaft Diameter: Φ8mm
  • Shaft Length: 22mm
  • Keyway Legngth: 14mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 600g
  • Stepper Drive: FLKH2D1228DC

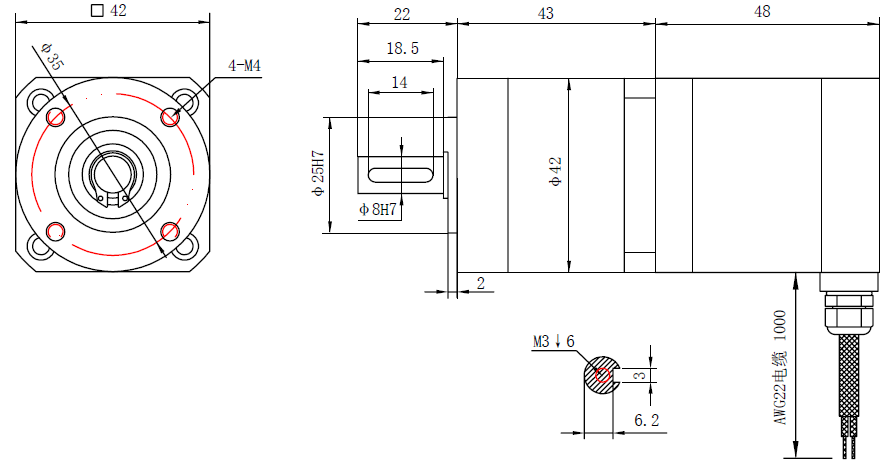

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!

Reviews

There are no reviews yet.

Be the first to review “Size 42mm NEMA 17 Planetary Gearbox Stepper Motor Waterproof IP65 Gear Ratio 10:1”

Your email address will not be published. Required fields are marked *

Tag: ip65, ip68, waterproof geared motor, waterproof stepper motor
