Size 42mm NEMA 17 L=26mm 0.9deg KG Series Precision Planetary Gearbox Reduction Short Stepper Motor

Size 42mm NEMA 17 L=26mm 0.9deg KG Series Precision Planetary Gearbox Reduction Short Stepper Motor

Price range: $50.00 through $55.00

In Stock:

10

Model: 42AI26-1404S-KGXX

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

NEMA 17 Geared Stepper Motor 26mm: This compact geared stepper motor has a frame size 42x42mm with rated current 1.4a, integrated with a KG series high precision planetary gearbox that has a wide range of gear ratio 4 to 100. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 17 Geared Stepper Motor 26mm Specification

  • Part Number: 42AI26-1404S-KG
  • Step Angle: 0.9deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.18Nm w/o gearbox
  • Rated Current/phase: 1.4A
  • Frame Size: 42x42mm
  • Motor Length: 26mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 4-70:1
  • Efficiency: 96%-94%
  • Backlash at No-load: 15arcmin-20arcmin
  • Gearbox Length: 40mm-51mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • Keyway Length: 14mm

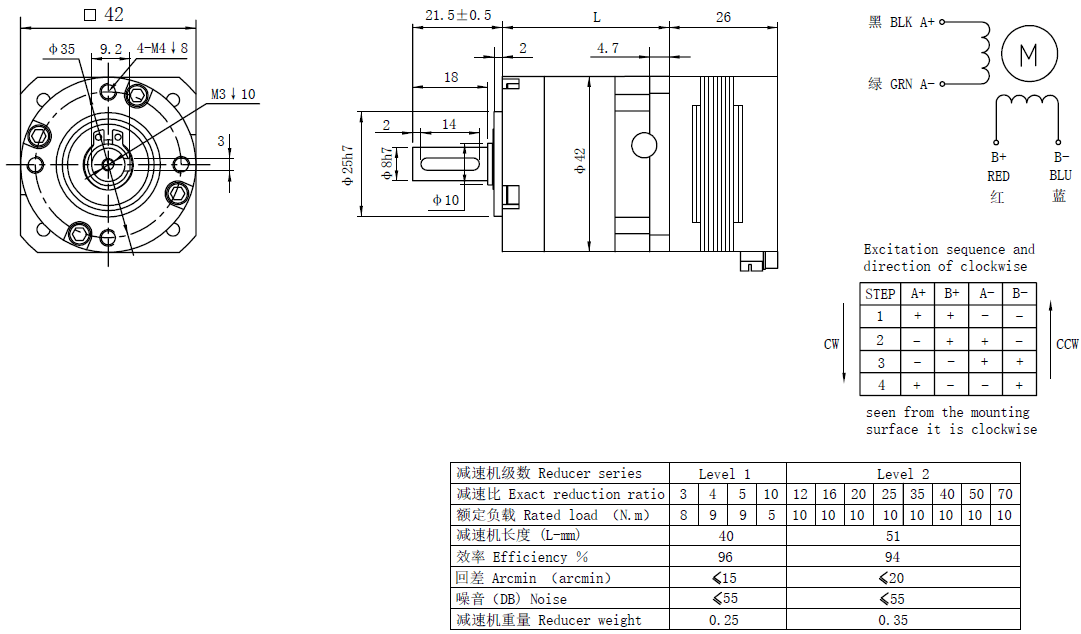

Overall Size

NEMA 17 Geared Stepper Motor 26mm
