Size 42mm NEMA 17 L=40mm 1.68A Economy Planetary Gearbox Stepper Motor

Size 42mm NEMA 17 L=40mm 1.68A Economy Planetary Gearbox Stepper Motor

$28.00

In Stock:

10

Model: 42AI40-1684S-PG

Weight: 0.55KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

NEMA 17 Economy Geared Stepper: This compact geared stepper motor has a frame size 42x42mm with rated current 1.68A, integrated with a PG series planetary gearbox that has a wide range of gear ratio 4 to 139. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 17 Economy Geared Stepper Specification

  • Part Number: 42AI40-1684S-PG
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.45Nm w/o gearbox
  • Rated Current/phase: 1.68A
  • Insulation Class: B 130°C
  • Frame Size: 42x42mm
  • Motor Length: 40mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 4-139:1
  • Efficiency: 90%-70%
  • Backlash at No-load: 1.0deg-2.0deg
  • Gearbox Length: 29.2mm-44.6mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm

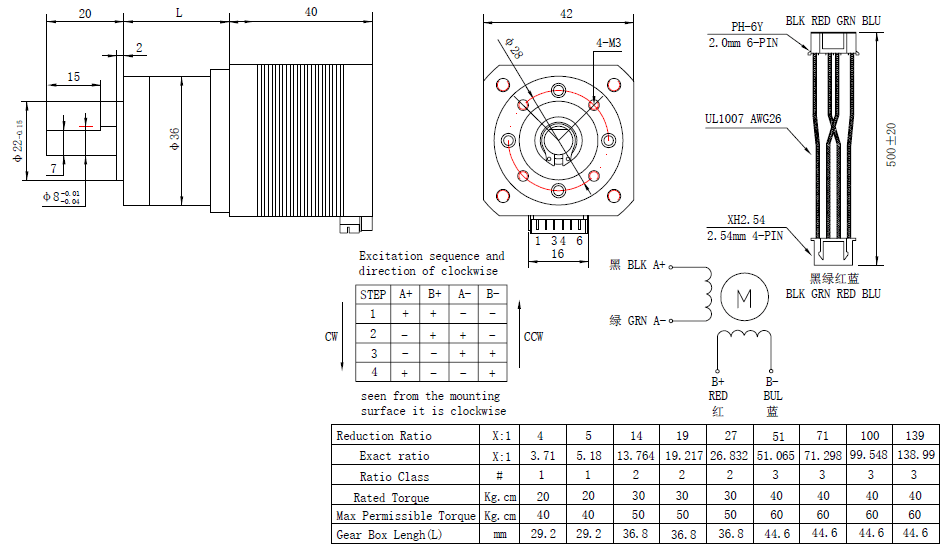

Overall Size

NEMA 17 Economy Geared Stepper
