Size 42mm NEMA 17 Linear Actuator Stepper Motor Ball Screw 40mm Stack Lead 4mm Length 85mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor Ball Screw 40mm Stack Lead 4mm Length 85mm

$80.00

In Stock:

5

Model: 42AI40-2004G-85L1204

Weight: 0.55KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Ball Screw Stepper Motor: This size 42mm model is a NEMA 17 External type ball screw linear actuator stepper motor with a 40mm body length, 1.8 degree step angle and 2.0A rated current. It is integrated with a Φ12mm diameter, 85mm ball screw length and a ball screw nut, the linear travel is 4mm per revolution/0.02mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Ball Screw Stepper Motor Specification

NEMA 17 Ball Screw Stepper Motor

  • Part Number: 42AI40-2004G-85L1204
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 40mm
  • Lead Length: 85mm
  • Lead Screw Diameter: Φ12mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 500g
  • Stepper Drive: FLKH2D1228DC

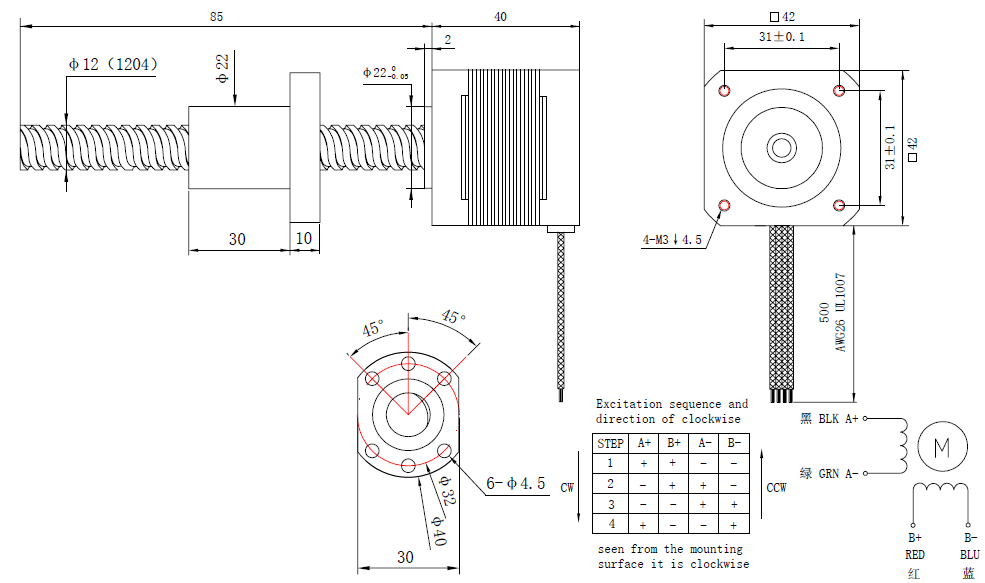

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
