Size 35mm NEMA 14 Spur Eccentric Gearbox Reduction Stepper Motor Gear Ratio 10:1

Size 35mm NEMA 14 Spur Eccentric Gearbox Reduction Stepper Motor Gear Ratio 10:1

$35.00

In Stock:

10

Model: 35AI34-1004S-PX10

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 14 Spur Gearbox Stepper: This compact geared stepper motor has a frame size 35-34mm with rated current 1a, integrated with spur eccentric gearbox of gear ratio 10:1. It is an ideal choice for the applications that require high torque or low speed but precision motion control under special mounting space.

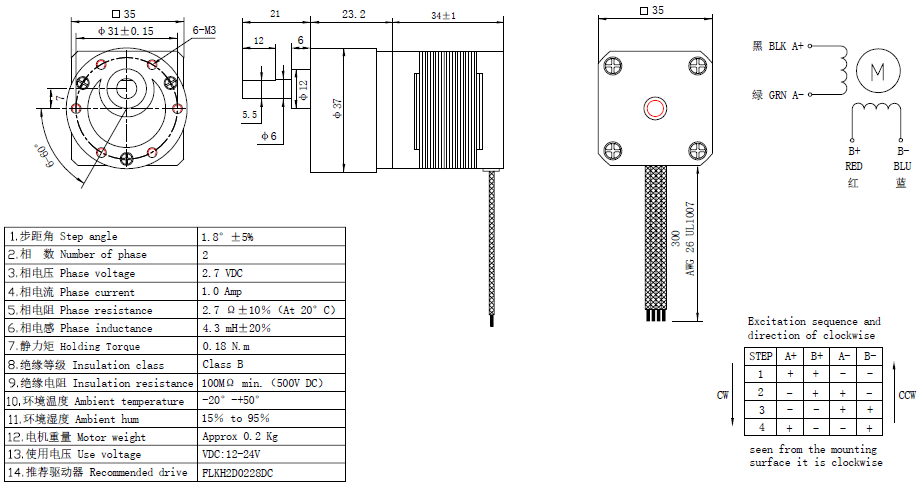

NEMA 14 Spur Gearbox Stepper Specification

NEMA 14 Spur Gearbox Stepper

  • Part Number: 35AI34-1004S-PX10
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.18Nm w/o gearbox
  • Rated Current/phase: 1.0A
  • Frame Size: 35x35mm
  • Motor Length: 34mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Gearbox Type: Spur
  • Gear Ratio: 10:1
  • Efficiency: 80%
  • Backlash at No-load: 2.5deg
  • Gearbox Length: 23.2mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 21mm
  • D-cut Length: 12mm
  • Stepper Drive: FLKH2D1228DC

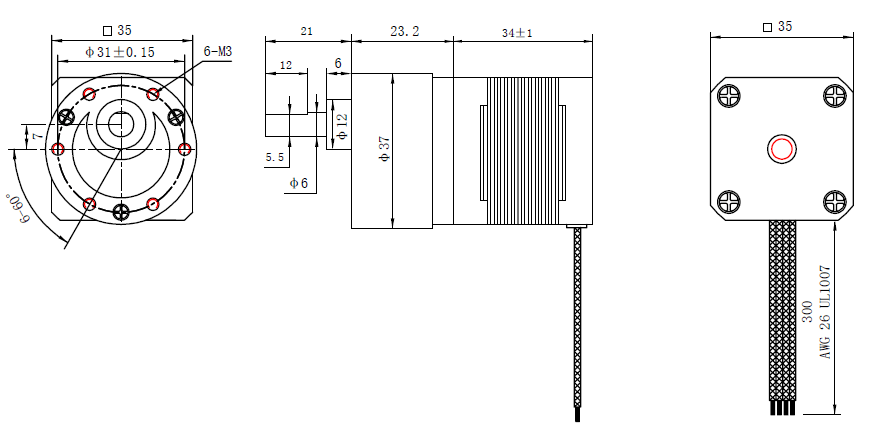

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
