Size 35mm NEMA 14 Linear Actuator Stepper Motor External Type 28mm Stack Lead 8mm Length 100mm

Size 35mm NEMA 14 Linear Actuator Stepper Motor External Type 28mm Stack Lead 8mm Length 100mm

$40.00

In Stock:

5

Model: 35AI28-1204E-100N88

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 14 Linear Stepper Motor 28mm: This size 35mm model is a NEMA 14 External type lead screw linear stepper motor with a 28mm body length, 1.8 degree step angle and 1.2A rated current. It is integrated with a Φ8mm diameter, 100mm lead screw length and a POM screw nut, the linear travel is 8mm per revolution/0.04mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 14 Linear Stepper Motor 28mm Specification

NEMA 14 Linear Stepper Motor 28mm

  • Part Number: 35AI28-1204E-100N88
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.2A
  • Driving Voltage: 12-24VDC
  • Frame Size: 35x35mm
  • Body Length: 28mm
  • Lead Screw Length: 100mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 8mm
  • Lead/Step: 0.04mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 200g
  • Stepper Drive: FLKH2D1228DC

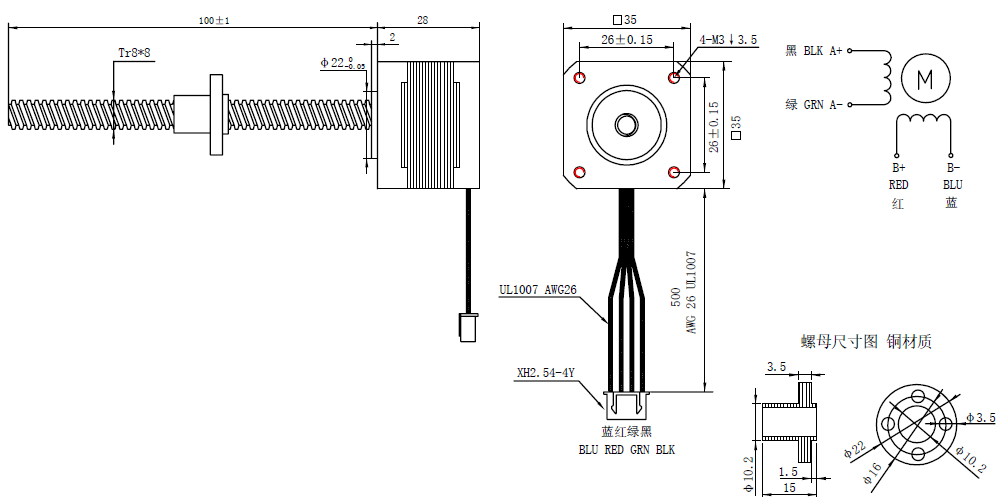

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
