Size 35mm NEMA 14 Linear Actuator Stepper Motor Non-captive Type 34mm Stack Lead 2mm Length 180mm

Size 35mm NEMA 14 Linear Actuator Stepper Motor Non-captive Type 34mm Stack Lead 2mm Length 180mm

$40.00

In Stock:

5

Model: 35AI34-1004N-180N62M5

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 14 Lead Screw Stepper Motor: This size 35mm model is a NEMA 14 Non-captive type lead screw linear actuator stepper motor with a 34mm body length, 1.8 degree step angle and 1.0A rated current. It is integrated with a Φ6mm diameter, 180mm lead screw length with a M5 thread nose, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 14 Lead Screw Stepper Motor Specification

NEMA 14 Lead Screw Stepper Motor

  • Part Number: 35AI34-1004N-200N62M5
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: 35x35mm
  • Body Length: 34mm
  • Lead Screw Length: 180mm
  • Lead Screw Diameter: Φ6mm
  • Lead/Revolution: 2mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 250g
  • Stepper Drive: FLKH2D1228DC

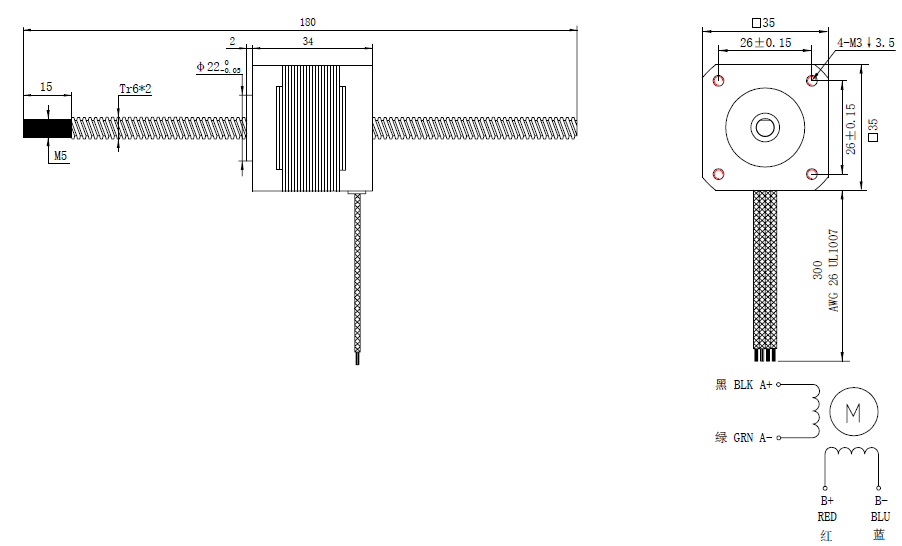

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
