Size 28mm NEMA 11 Stepper Motor Bipolar 1.8deg 0.12Nm 0.67A 28x51mm 4 Wires

Size 28mm NEMA 11 Stepper Motor Bipolar 1.8deg 0.12Nm 0.67A 28x51mm 4 Wires

$9.00

In Stock:

50

Model: 28AI51-0674S

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

High Torque NEMA 11 Stepper Motor: This size 28mm strong NEMA 11 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 51mm. Each phase draws current 0.67A, allowing for a holding torque of 0.12Nm. It is widely used in 3D printing equipment, medical imaging machinery, small robots, etc.

High Torque NEMA 11 Stepper Motor Specification

  • Part Number: 28AI51-0674S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.12Nm
  • Rated Current/phase: 0.67A
  • Phase Resistance: 9.2ohms
  • Inductance: 7.2mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 51mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 200g

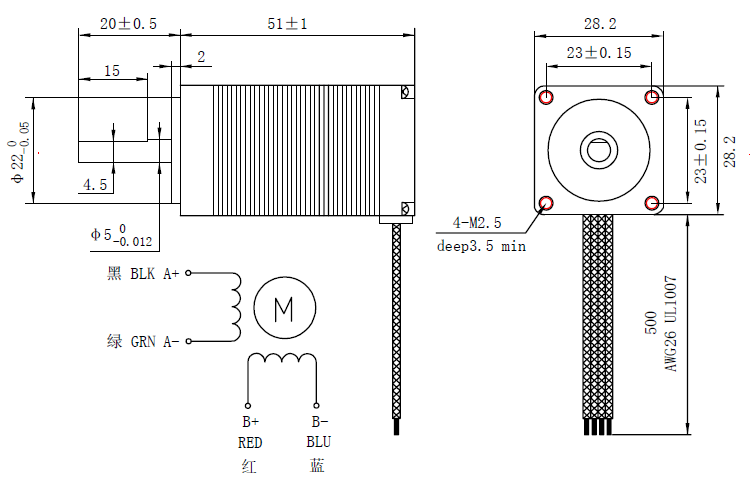

Overall Size

High Torque NEMA 11 Stepper Motor
